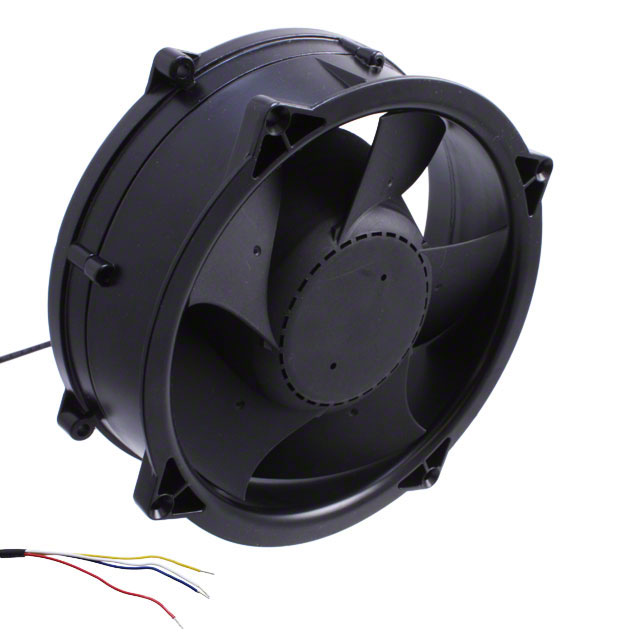

Comair Rotron
| Part Number | 19044009A | Manufacturer | Comair Rotron |
|---|---|---|---|
| Description | FAN AXIAL 200.7X69.9MM MFSE48Z | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 668 pcs | Data sheet | 1.19044009A.pdf2.19044009A.pdf |
| Width | 69.90mm | Weight | 4 lbs (1.8kg) |
| Voltage Range | 36 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 4 Wire Leads | Static Pressure | 2.820 in H2O (702.5 Pa) |
| Size / Dimension | Round - 200.7mm Dia | Series | Mixtus |
| RPM | 4600 RPM | Power (Watts) | 110.0W |
| Other Names | 004009 044009 CR578 MFSE48Z |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 65.4 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 2.3A | Bearing Type | Ball |
| Approvals | CCC, CE, UL | Air Flow | 530.0 CFM (14.84m³/min) |
