Comair Rotron
| Part Number | 19043171A | Manufacturer | Comair Rotron |
|---|---|---|---|

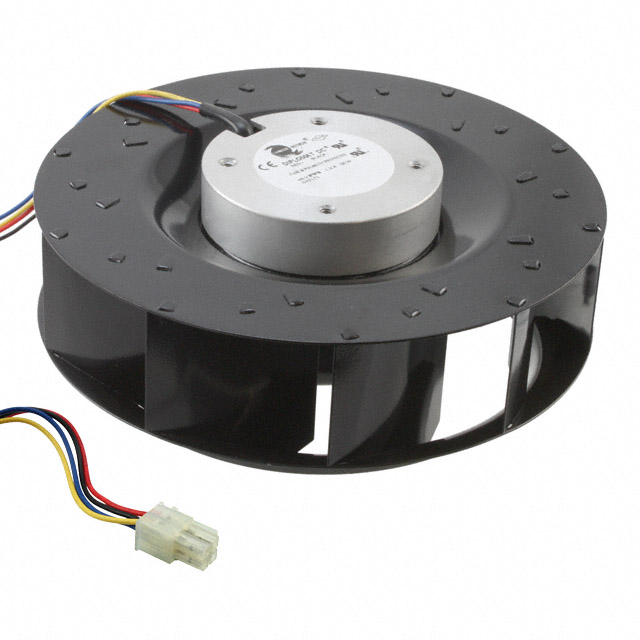

| Description | FAN IMP 175X68.6MM DD692748Z1E5X | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1254 pcs | Data sheet | 1.19043171A.pdf2.19043171A.pdf |
| Width | 68.60mm | Weight | 2.3 lbs (1kg) |
| Voltage Range | 24 ~ 72VDC | Voltage - Rated | 48VDC |
| Termination | 4 Wire Leads | Static Pressure | 1.800 in H2O (448.4 Pa) |
| Size / Dimension | Round - 175mm Dia | Series | Diplomat |
| RPM | 3435 RPM | Power (Watts) | 52.9W |
| Other Names | 043171 CR574 DD692748Z1E5X |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 71.2 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Metal |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Motorized Impellers |
| Current Rating | 1.2A | Bearing Type | Ball |
| Approvals | CE, UR | Air Flow | 354.0 CFM (9.91m³/min) |
