Comair Rotron
| Part Number | 19039646A | Manufacturer | Comair Rotron |
|---|---|---|---|

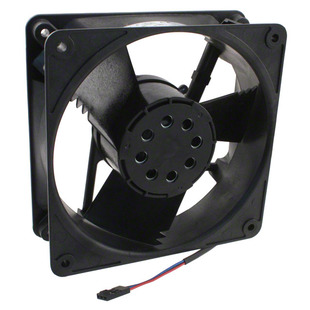

| Description | FAN AXIAL 119X39MM MDD48K6S3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2938 pcs | Data sheet | 1.19039646A.pdf2.19039646A.pdf |
| Width | 39.12mm | Weight | - |
| Voltage Range | 24 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 3 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 119.13mm L x 119.13mm H | Series | Muffin XL |
| RPM | 3600 RPM | Power (Watts) | 7.70W |
| Other Names | 039646 CR571 MD48K0SX-P MDD48K6S3 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 53.2 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Zinc | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | 83000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.160A | Bearing Type | Ball |
| Approvals | CE, UL | Air Flow | 128.0 CFM (3.58m³/min) |
