Comair Rotron
| Part Number | 19032196A | Manufacturer | Comair Rotron |
|---|---|---|---|

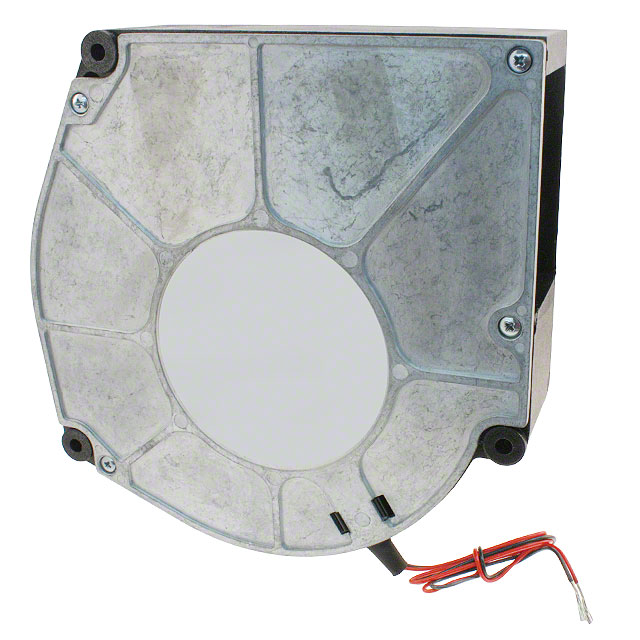

| Description | FAN BLOWER 160.7X50.2MM SPD48B1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1545 pcs | Data sheet | 1.19032196A.pdf2.19032196A.pdf3.19032196A.pdf |
| Width | 50.20mm | Weight | 2.1 lbs (952.5g) |
| Voltage Range | 24 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads | Static Pressure | 1.100 in H2O (274.0 Pa) |
| Size / Dimension | Rectangular/Rounded - 160.7mm L x 161.3mm H | Series | Spinnaker |
| RPM | 2500 RPM | Power (Watts) | 24.00W |
| Other Names | 032196 032196 - SPD48B1 CR539 |
Operating Temperature | - |
| Noise | 57.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.530A | Bearing Type | Ball |
| Approvals | UL | Air Flow | 60.0 CFM (1.68m³/min) |
