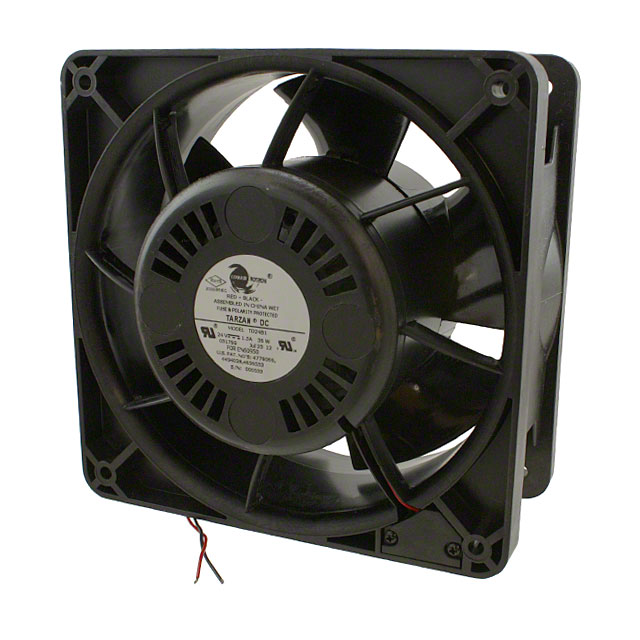

Comair Rotron
| Part Number | 19031769A | Manufacturer | Comair Rotron |
|---|---|---|---|
| Description | FAN AXIAL 175.5X111.8MM TD24B1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 914 pcs | Data sheet | 1.19031769A.pdf2.19031769A.pdf3.19031769A.pdf |
| Width | 111.8mm | Weight | 5 lbs (2.3kg) |
| Voltage Range | 12 ~ 28VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.630 in H2O (156.9 Pa) |
| Size / Dimension | Square - 175.5mm L x 175.5mm H | Series | Tarzan |
| RPM | 3250 RPM | Power (Watts) | 36.00W |
| Other Names | 031769 CR300 Q6122958 TD24B1 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 65.2 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | 35000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 1.6A | Bearing Type | Ball |
| Approvals | cUL, UL | Air Flow | 325.0 CFM (9.10m³/min) |
