Comair Rotron
| Part Number | 19031328A | Manufacturer | Comair Rotron |
|---|---|---|---|

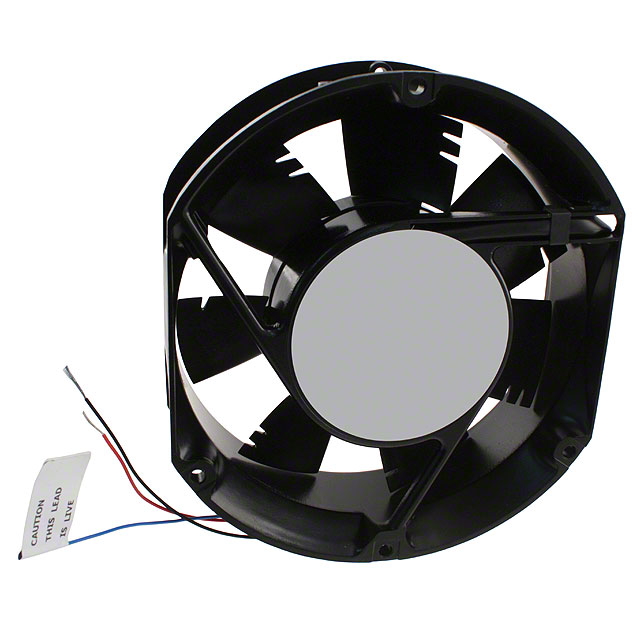

| Description | FAN AXIAL 171.5X50.8MM JQ48B7 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1419 pcs | Data sheet | 1.19031328A.pdf2.19031328A.pdf |
| Width | 50.80mm | Weight | 1.9 lbs (861.8g) |
| Voltage Range | 24 ~ 56VDC | Voltage - Rated | 48VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.812 in H2O (202.3 Pa) |
| Size / Dimension | Rectangular/Rounded - 171.5mm L x 150.4mm H | Series | Major |
| RPM | 3475 RPM | Power (Watts) | 22.00W |
| Other Names | 031328 CR522 JQ48B7 |
Operating Temperature | - |
| Noise | 54.3 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.460A | Bearing Type | Ball |
| Approvals | CE, cUL, UL | Air Flow | 235.0 CFM (6.58m³/min) |
