Comair Rotron

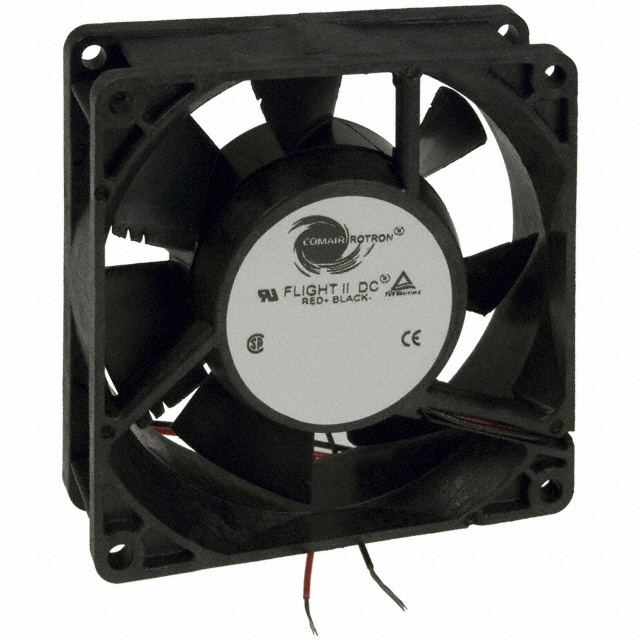

| Part Number | 19031168A | Manufacturer | Comair Rotron |
|---|---|---|---|
| Description | FAN AXIAL 92X25.4MM 12VDC FN12B3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3112 pcs | Data sheet | 1.19031168A.pdf2.19031168A.pdf |
| Width | 25.40mm | Weight | 0.441 lb (200.03g) |
| Voltage Range | 6 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.182 in H2O (45.3 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | Flight II 90 |
| RPM | 2784 RPM | Power (Watts) | 2.40W |
| Other Names | 031168 032280 CR034 FL12A309 FN12B3 |
Operating Temperature | - |
| Noise | 38.1 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | - | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.200A |
| Bearing Type | Ball | Approvals | - |
| Air Flow | 45.0 CFM (1.26m³/min) |
