Comair Rotron

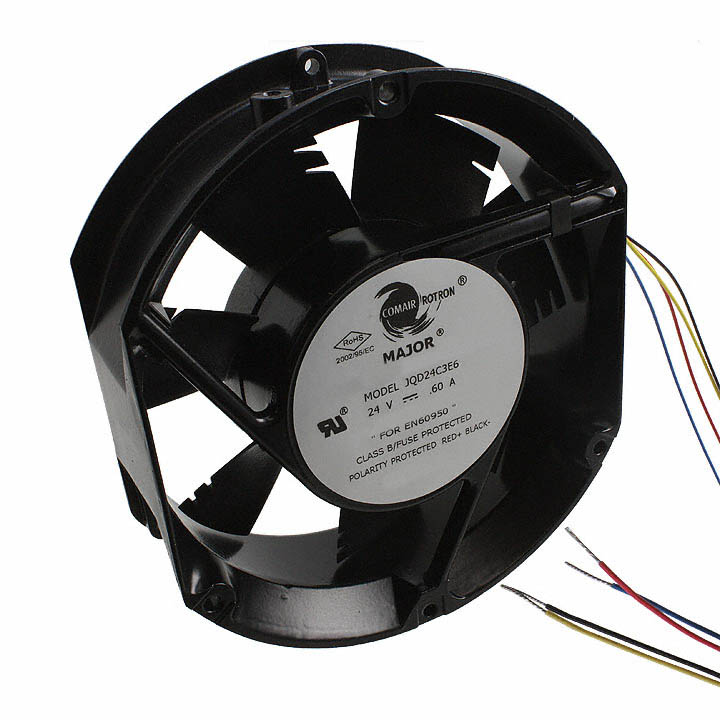

| Part Number | 16005460A | Manufacturer | Comair Rotron |
|---|---|---|---|
| Description | FAN AXIAL 171.4X50.8MM JQD24C3E6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1539 pcs | Data sheet | 1.16005460A.pdf2.16005460A.pdf |
| Width | 50.80mm | Weight | - |
| Voltage Range | 16 ~ 32VDC | Voltage - Rated | 24VDC |
| Termination | 4 Wire Leads | Static Pressure | - |
| Size / Dimension | Rectangular/Rounded - 171.4mm L x 150.4mm H | Series | Major |
| RPM | 3000 RPM | Power (Watts) | 14.40W |
| Other Names | 005460 19005460A CR584 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 50.8 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | - | Material - Blade | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lifetime @ Temp. | 75000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | PWM Control, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.600A | Bearing Type | Ball |
| Approvals | CE, UL | Air Flow | 200.0 CFM (5.60m³/min) |
