CL-426F-AA-SD-TS

Citizen Electronics Co., Ltd.

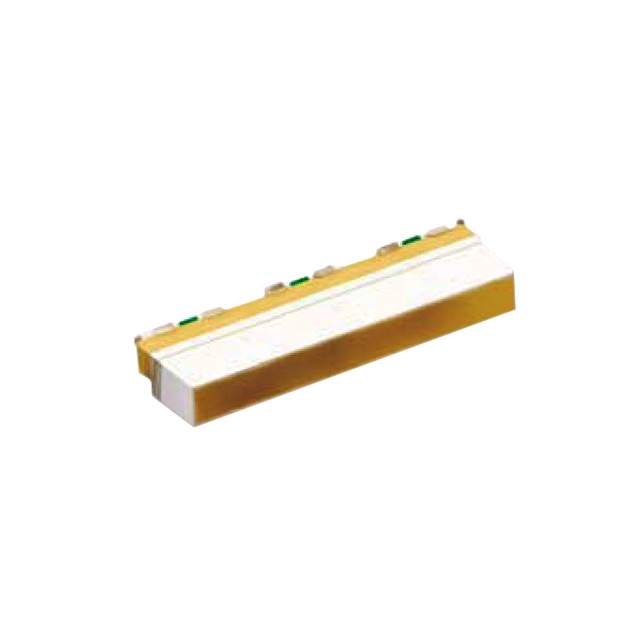

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CL-426F-AA-SD-TS
Manufacturer/Brand:	Citizen Electronics Co., Ltd.
Product description	LED RGB SMD R/A
Datasheets:	CL-426F-AA-SD-TS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	268110 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 268110 pcs

Reference Price (In US Dollars)

3000 pcs: $0.139

6000 pcs: $0.136

15000 pcs: $0.131

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.139

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CL-426F-AA-SD-TS

Part Number	CL-426F-AA-SD-TS	Manufacturer	Citizen Electronics Co., Ltd.
Description	LED RGB SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	268110 pcs	Data sheet	CL-426F-AA-SD-TS.pdf
Wavelength - Peak	-	Wavelength - Dominant	628nm Red, 530nm Green, 470nm Blue
Voltage - Forward (Vf) (Typ)	1.85V Red, 2.7V Green, 2.75V Blue	Viewing Angle	-
Supplier Device Package	-	Size / Dimension	2.80mm L x 0.85mm W
Series	CL-426	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Other Names	1642-1512-2 CL-426F-AA-SD
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	160mcd Red, 250mcd Green, 52mcd Blue	Manufacturer Standard Lead Time	8 Weeks
Lens Transparency	-	Lens Style/Size	Rectangle with Flat Top, 2.80mm x 0.35mm
Lens Color	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.35mm	Features	-
Detailed Description	Red, Green, Blue (RGB) 628nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 4-SMD, No Lead	Current - Test	5mA Red, 5mA Green, 5mA Blue
Configuration	Common Anode	Color	Red, Green, Blue (RGB)
