PA0184-S

Chip Quik, Inc.

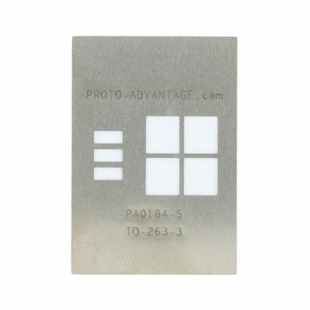

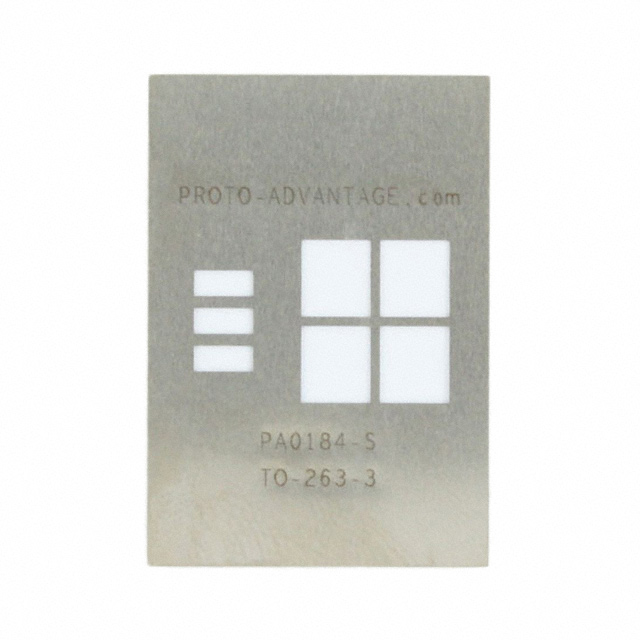

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0184-S
Manufacturer/Brand:	Chip Quik, Inc.
Product description	TO-263-3 STENCIL
Datasheets:	1.PA0184-S.pdf 2.PA0184-S.pdf 3.PA0184-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7833 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7833 pcs

Reference Price (In US Dollars)

1 pcs: $4.187

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.187

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0184-S

Part Number	PA0184-S	Manufacturer	Chip Quik, Inc.
Description	TO-263-3 STENCIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7833 pcs	Data sheet	1.PA0184-S.pdf 2.PA0184-S.pdf 3.PA0184-S.pdf
Type	TO/DDPAK	Thickness	0.0040" (0.102mm)
Thermal Center Pad	0.394" L x 0.433" W (10.00mm x 11.00mm)	Series	Proto-Advantage
Pitch	0.100" (2.54mm)	Outer Dimension	0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions	3	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	Stainless Steel	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inner Dimension	0.400" L x 0.390" W (10.16mm x 9.91mm)
