IPC0159-S

Chip Quik, Inc.Chip Quik, Inc.

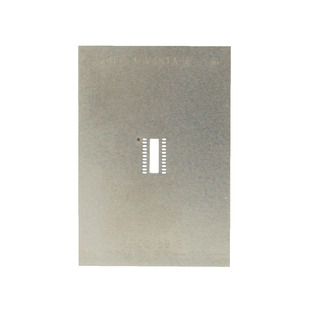

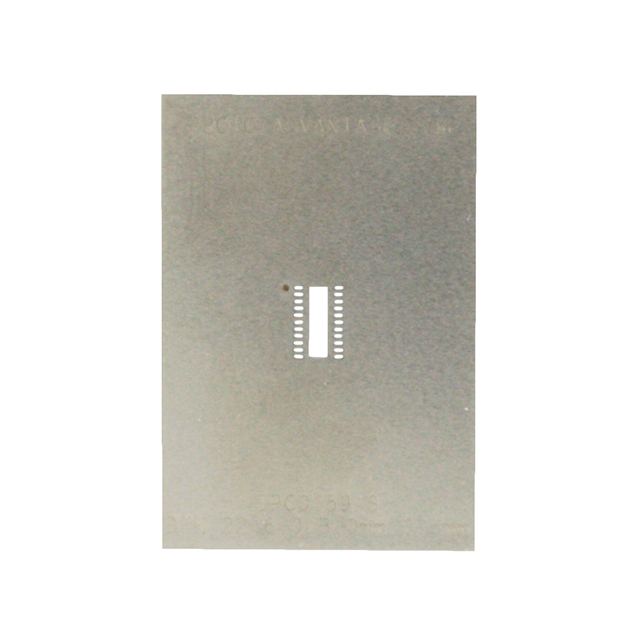

IPC0159-S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IPC0159-S
Manufacturer/Brand: Chip Quik, Inc.
Product description DFN-22 (0.5MM PITCH, 6X3MM BODY)
Datasheets: 1.IPC0159-S.pdf2.IPC0159-S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 8085 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 8085 pcs
Reference Price (In US Dollars)
1 pcs
$4.671
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$4.671

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IPC0159-S

Part Number IPC0159-S Manufacturer Chip Quik, Inc.
Description DFN-22 (0.5MM PITCH, 6X3MM BODY) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 8085 pcs Data sheet 1.IPC0159-S.pdf2.IPC0159-S.pdf
Type DFN Thickness 0.0040" (0.102mm)
Thermal Center Pad 0.065" L x 0.211" W (1.65mm x 5.35mm) Series Proto-Advantage
Pitch 0.020" (0.50mm) Outer Dimension 0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions 22 Material Stainless Steel
Manufacturer Standard Lead Time 2 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inner Dimension 0.236" L x 0.118" W (6.00mm x 3.00mm)
