IPC0153-S

Chip Quik, Inc.

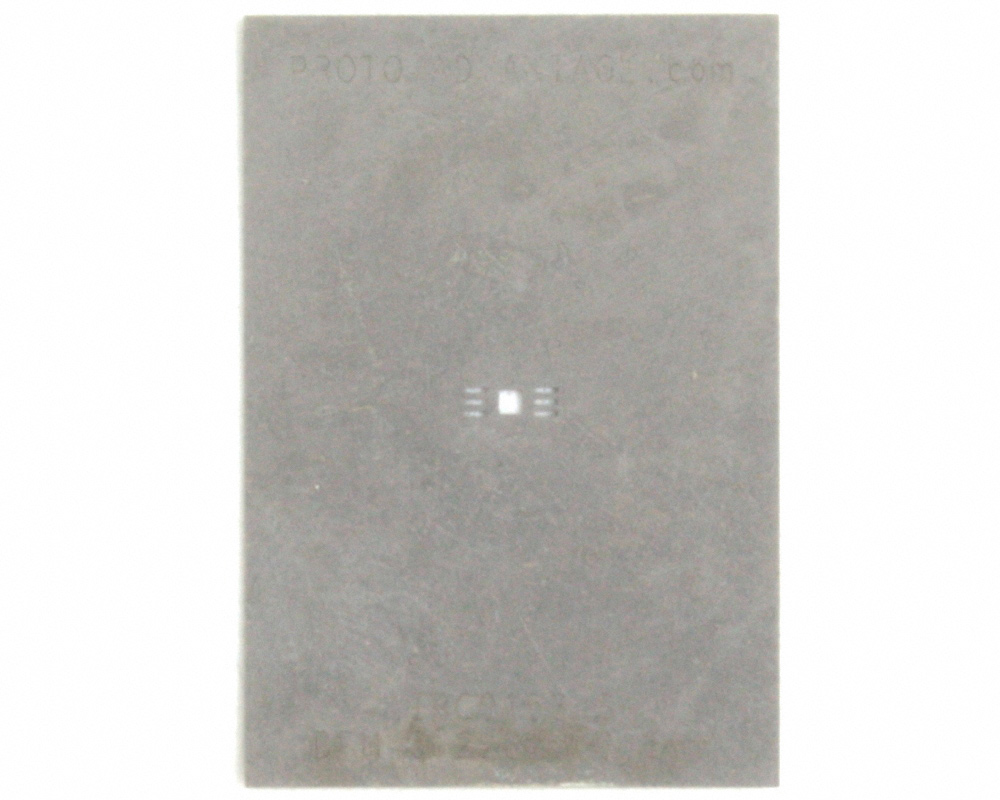

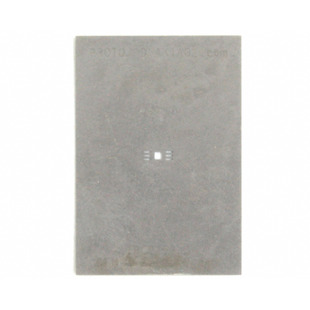

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPC0153-S
Manufacturer/Brand:	Chip Quik, Inc.
Product description	DFN-6 STENCIL
Datasheets:	1.IPC0153-S.pdf 2.IPC0153-S.pdf 3.IPC0153-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7128 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7128 pcs

Reference Price (In US Dollars)

1 pcs: $4.187

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.187

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPC0153-S

Part Number	IPC0153-S	Manufacturer	Chip Quik, Inc.
Description	DFN-6 STENCIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7128 pcs	Data sheet	1.IPC0153-S.pdf 2.IPC0153-S.pdf 3.IPC0153-S.pdf
Type	DFN	Thickness	0.0040" (0.102mm)
Thermal Center Pad	0.049" L x 0.051" W (1.25mm x 1.30mm)	Series	Proto-Advantage
Pitch	0.020" (0.50mm)	Outer Dimension	0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions	6	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	Stainless Steel	Manufacturer Standard Lead Time	2 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inner Dimension	0.079" L x 0.118" W (2.00mm x 3.00mm)
