IPC0091-S

Chip Quik, Inc.

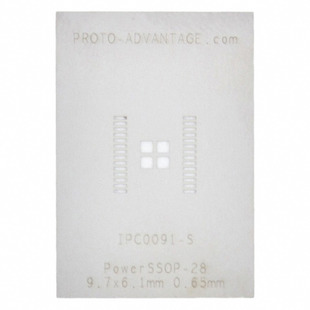

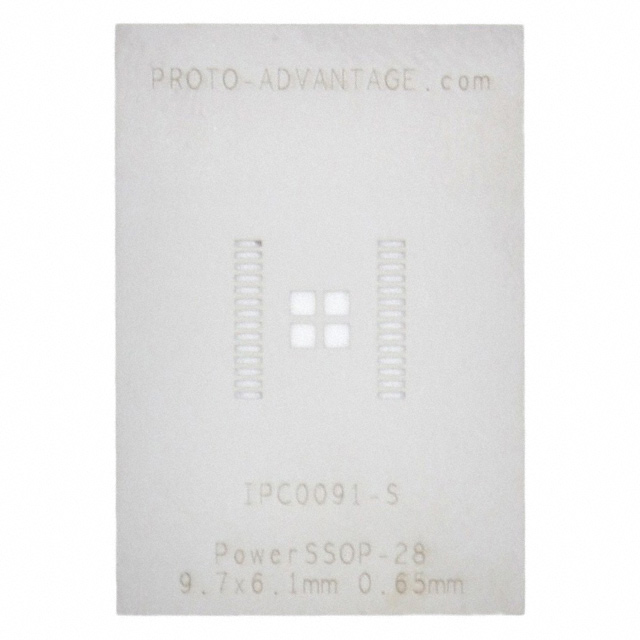

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPC0091-S
Manufacturer/Brand:	Chip Quik, Inc.
Product description	POWERSSOP-28 STENCIL
Datasheets:	1.IPC0091-S.pdf 2.IPC0091-S.pdf 3.IPC0091-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9207 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9207 pcs

Reference Price (In US Dollars)

1 pcs: $4.187

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.187

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPC0091-S

Part Number	IPC0091-S	Manufacturer	Chip Quik, Inc.
Description	POWERSSOP-28 STENCIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9207 pcs	Data sheet	1.IPC0091-S.pdf 2.IPC0091-S.pdf 3.IPC0091-S.pdf
Type	PowerSSOP	Thickness	0.0040" (0.102mm)
Thermal Center Pad	0.162" L x 0.154" W (4.11mm x 3.91mm)	Series	Proto-Advantage
Pitch	0.026" (0.65mm)	Outer Dimension	0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions	28	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material	Stainless Steel	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inner Dimension	0.382" L x 0.240" W (9.70mm x 6.10mm)
