KTG2BNB1BBBNNN

Cherry Switches (ZF Electronics)

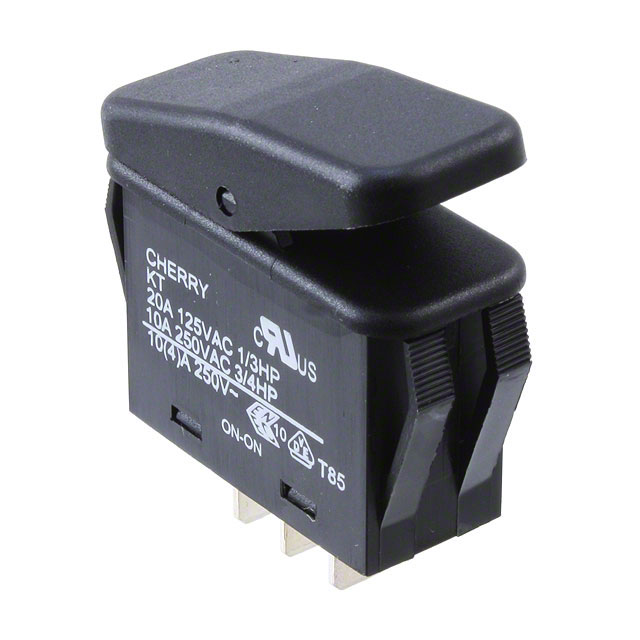

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KTG2BNB1BBBNNN
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER SPDT 20A 125V
Datasheets:	KTG2BNB1BBBNNN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27676 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 27676 pcs

Reference Price (In US Dollars)

500 pcs: $1.397

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.397

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KTG2BNB1BBBNNN

Part Number	KTG2BNB1BBBNNN	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27676 pcs	Data sheet	KTG2BNB1BBBNNN.pdf
Voltage Rating - DC	14V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-On
Series	KT	Panel Cutout Dimensions	Rectangular - 36.80mm x 15.20mm
Packaging	Bulk	Other Names	CH958
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP56 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch SPDT 20A (AC), 21A (DC) 125V Panel Mount, Snap-In
Current Rating	20A (AC), 21A (DC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Convex (Reverse V)
Actuator Marking	No Marking
