KMD3CMB8BBBRG2

Cherry Switches (ZF Electronics)

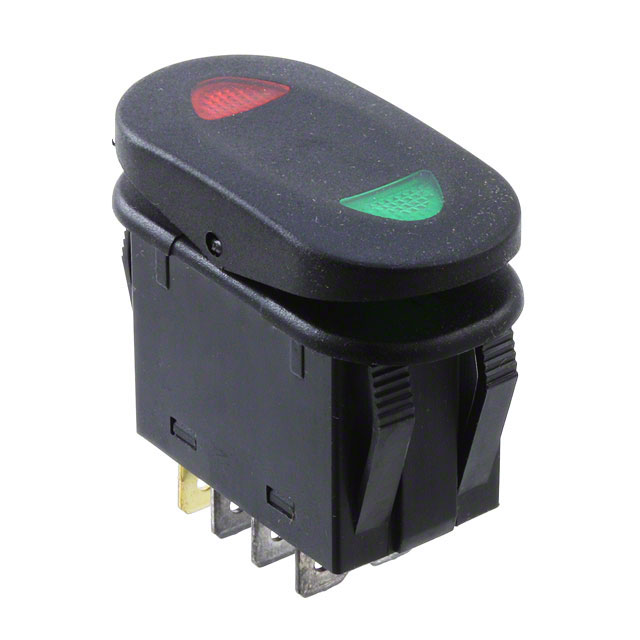

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KMD3CMB8BBBRG2
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER DPDT 20A 125V
Datasheets:	KMD3CMB8BBBRG2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6614 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6614 pcs

Reference Price (In US Dollars)

1 pcs: $5.159

10 pcs: $4.643

25 pcs: $4.514

50 pcs: $4.385

100 pcs: $4.256

250 pcs: $4.127

500 pcs: $3.611

1000 pcs: $3.418

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$5.159

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KMD3CMB8BBBRG2

Part Number	KMD3CMB8BBBRG2	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6614 pcs	Data sheet	KMD3CMB8BBBRG2.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Off-On	Series	KM
Panel Cutout Dimensions	Rectangular - 36.60mm x 21.20mm	Packaging	Bulk
Other Names	CH955 KMD3CLB8BBBRG2	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP56 - Dust Protected, Water Resistant
Illumination Voltage (Nominal)	14 VDC	Illumination Type, Color	LED, Red/Green
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In	Current Rating	20A (AC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Flat - Illuminated	Actuator Marking	No Marking
