KGC2ANB1BBD

Cherry Switches (ZF Electronics)

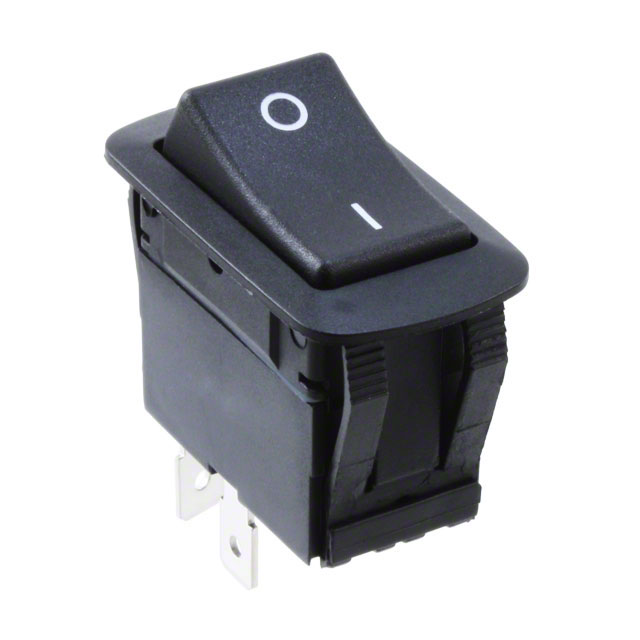

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KGC2ANB1BBD
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER SPST 20A 125V
Datasheets:	KGC2ANB1BBD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16251 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16251 pcs

Reference Price (In US Dollars)

1 pcs: $1.897

10 pcs: $1.806

25 pcs: $1.716

50 pcs: $1.626

100 pcs: $1.603

250 pcs: $1.558

500 pcs: $1.49

1000 pcs: $1.309

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.897

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KGC2ANB1BBD

Part Number	KGC2ANB1BBD	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER SPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16251 pcs	Data sheet	KGC2ANB1BBD.pdf
Voltage Rating - DC	14V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	KG	Panel Cutout Dimensions	Rectangular - 36.60mm x 21.20mm
Packaging	Bulk	Other Names	CH949
Operating Temperature	-20°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP56 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch SPST 20A (AC), 21A (DC) 125V Panel Mount, Snap-In
Current Rating	20A (AC), 21A (DC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Concave (Curved)
Actuator Marking	O -
