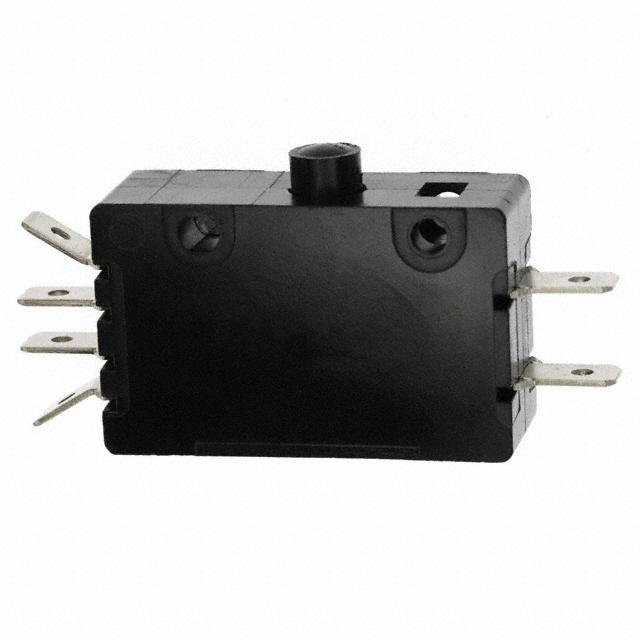

E19-00A

Cherry Switches (ZF Electronics)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	E19-00A
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION DPDT 15A 125V
Datasheets:	E19-00A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12175 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12175 pcs

Reference Price (In US Dollars)

1 pcs: $2.973

10 pcs: $2.377

25 pcs: $2.258

50 pcs: $2.199

100 pcs: $1.902

250 pcs: $1.783

500 pcs: $1.694

1000 pcs: $1.634

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.973

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of E19-00A

Part Number	E19-00A	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION DPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12175 pcs	Data sheet	E19-00A.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom	Series	E
Release Force	-	Pretravel	0.050" (1.27mm)
Packaging	Bulk	Overtravel	0.079" (2.0mm)
Other Names	0E19-00A 0E19-00A0 0E1900A0 0E1900AO CH320 E19-00A0 E1900A	Operating Temperature	-40°C ~ 105°C
Operating Position	0.285" (7.24mm)	Operating Force	850gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.015" (0.38mm)	Current Rating	15A (AC)
Circuit	DPDT	Actuator Type	Round (Pin Plunger)
