E13-00M

Cherry Switches (ZF Electronics)

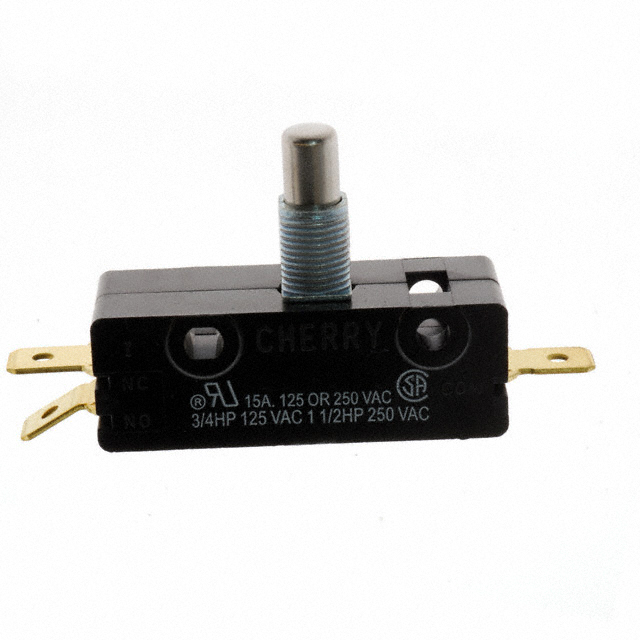

Image may be representation. See specifications for product details.

Product Overview

Part Number:	E13-00M
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 15A 125V
Datasheets:	E13-00M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14979 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14979 pcs

Reference Price (In US Dollars)

1 pcs: $2.16

10 pcs: $1.727

25 pcs: $1.64

50 pcs: $1.597

100 pcs: $1.381

250 pcs: $1.295

500 pcs: $1.23

1000 pcs: $1.187

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.16

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of E13-00M

Part Number	E13-00M	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14979 pcs	Data sheet	E13-00M.pdf
Voltage Rating - DC	48V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Mom
Series	E	Release Force	-
Pretravel	0.050" (1.27mm)	Packaging	Bulk
Overtravel	0.219" (5.6mm)	Other Names	0E13-00M 0E13-00M0 0E1300M0 CH101 E13-00M0 E1300M
Operating Temperature	-40°C ~ 105°C	Operating Position	0.812" (20.6mm)
Operating Force	425gf	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.015" (0.38mm)
Current Rating	15A (AC), 2A (DC)	Circuit	SPDT
Actuator Type	Overtravel Plunger
