DG23-B2LA

Cherry Switches (ZF Electronics)

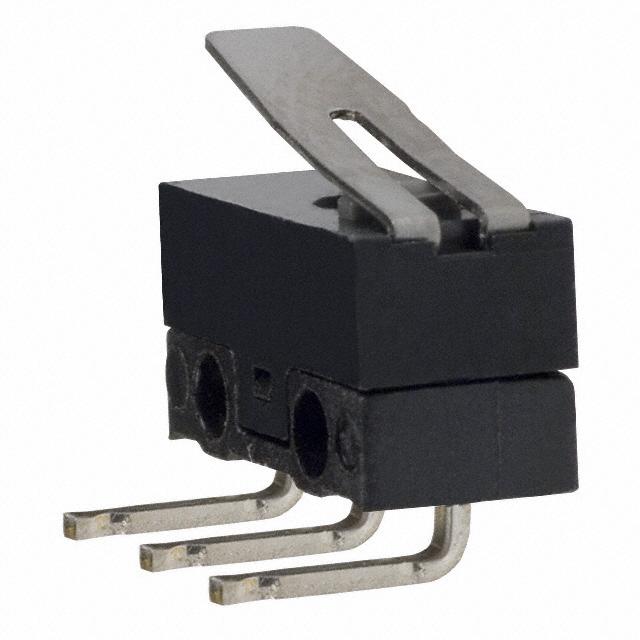

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG23-B2LA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 50MA 30V
Datasheets:	DG23-B2LA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43566 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 43566 pcs

Reference Price (In US Dollars)

1 pcs: $0.881

10 pcs: $0.815

25 pcs: $0.764

50 pcs: $0.747

100 pcs: $0.594

250 pcs: $0.56

500 pcs: $0.526

1000 pcs: $0.492

5000 pcs: $0.458

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.881

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG23-B2LA

Part Number	DG23-B2LA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 50MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43566 pcs	Data sheet	DG23-B2LA.pdf
Voltage Rating - DC	30V	Termination Style	PC Pin
Switch Function	On-Mom	Series	DG
Release Force	-	Pretravel	0.071" (1.8mm)
Packaging	Bulk	Overtravel	0.022" (0.55mm)
Other Names	CH621 DG23-B2LA-ND DG23B2LA DG2C-B2LA Q1160639	Operating Temperature	-25°C ~ 85°C
Operating Position	0.268" (6.8mm)	Operating Force	45gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	50mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
