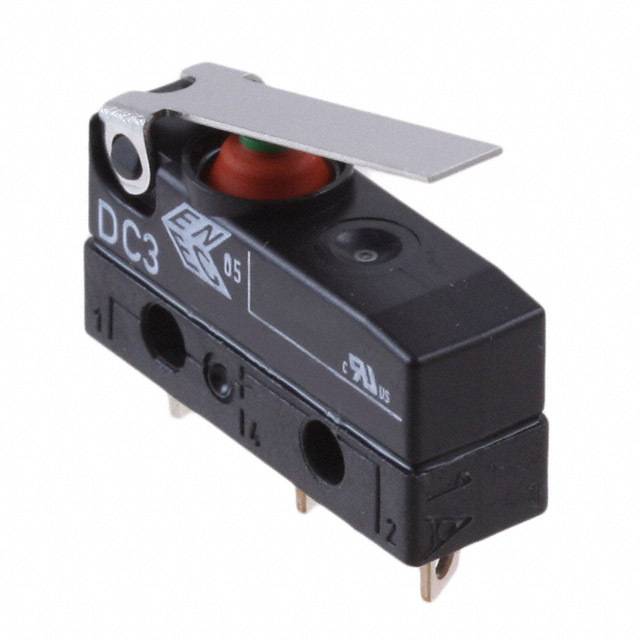

DC3C-A1LB

Cherry Switches (ZF Electronics)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DC3C-A1LB
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	1.DC3C-A1LB.pdf 2.DC3C-A1LB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14663 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14663 pcs

Reference Price (In US Dollars)

1 pcs: $2.178

10 pcs: $1.741

25 pcs: $1.654

50 pcs: $1.611

100 pcs: $1.393

250 pcs: $1.306

500 pcs: $1.241

1000 pcs: $1.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.178

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DC3C-A1LB

Part Number	DC3C-A1LB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14663 pcs	Data sheet	1.DC3C-A1LB.pdf 2.DC3C-A1LB.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	DC
Release Force	-	Pretravel	0.178" (4.5mm)
Packaging	Bulk	Overtravel	0.060" (1.5mm)
Other Names	CH613 DC3CA1LB	Operating Temperature	-40°C ~ 120°C
Operating Position	0.420" (10.7mm)	Operating Force	82gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	39 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	100mA (AC)
Circuit	SPDT	Actuator Type	Lever, Straight
