DB3CB1LB

Cherry Switches (ZF Electronics)

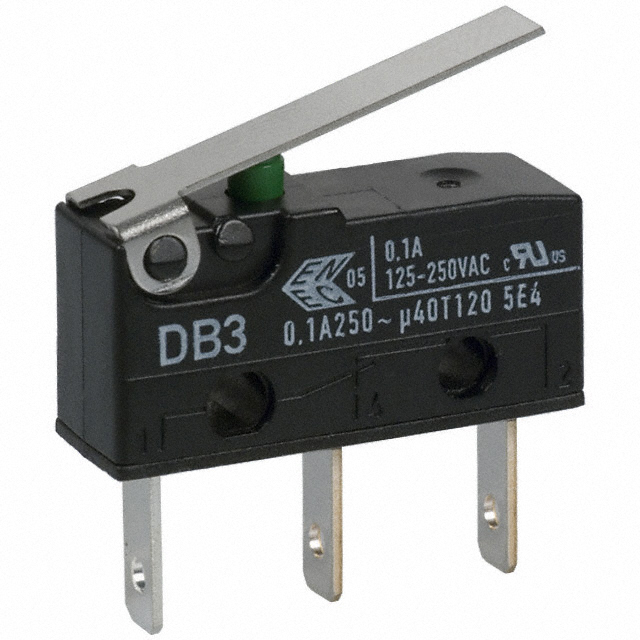

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB3CB1LB
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	DB3CB1LB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36278 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36278 pcs

Reference Price (In US Dollars)

1 pcs: $0.975

10 pcs: $0.902

25 pcs: $0.845

50 pcs: $0.827

100 pcs: $0.657

250 pcs: $0.62

500 pcs: $0.582

1000 pcs: $0.545

5000 pcs: $0.507

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.975

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB3CB1LB

Part Number	DB3CB1LB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36278 pcs	Data sheet	DB3CB1LB.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	DB
Release Force	-	Pretravel	0.157" (4.0mm)
Packaging	Bulk	Overtravel	0.079" (2.0mm)
Other Names	CH880 DB3C-B1LB	Operating Temperature	-40°C ~ 120°C
Operating Position	0.420" (10.7mm)	Operating Force	60gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	15,000,000 Cycles	Manufacturer Standard Lead Time	29 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	100,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	100mA (AC)
Circuit	SPDT	Actuator Type	Lever, Straight
