DB2CC1AA

Cherry Switches (ZF Electronics)

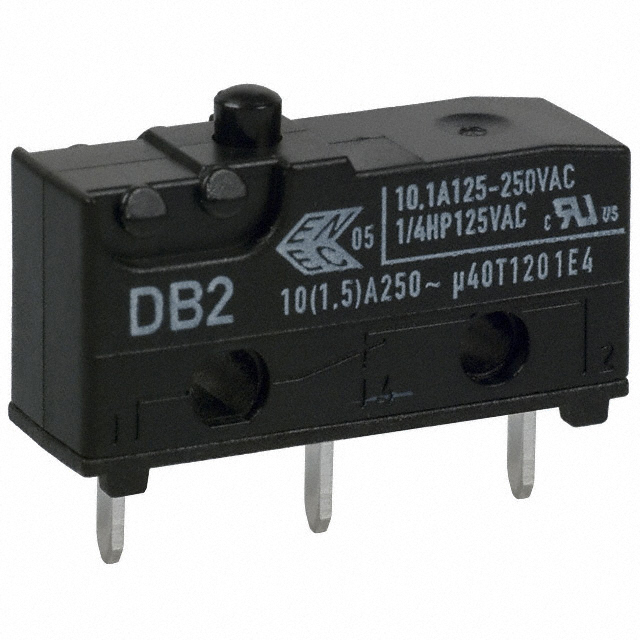

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB2CC1AA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 10A 125V
Datasheets:	1.DB2CC1AA.pdf 2.DB2CC1AA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37695 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 37695 pcs

Reference Price (In US Dollars)

1 pcs: $0.834

10 pcs: $0.772

25 pcs: $0.723

50 pcs: $0.707

100 pcs: $0.563

250 pcs: $0.53

500 pcs: $0.498

1000 pcs: $0.466

5000 pcs: $0.434

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.834

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB2CC1AA

Part Number	DB2CC1AA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37695 pcs	Data sheet	1.DB2CC1AA.pdf 2.DB2CC1AA.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Mom	Series	DB
Release Force	-	Pretravel	0.040" (1.0mm)
Packaging	Bulk	Overtravel	0.025" (0.6mm)
Other Names	CH883 DB2C-C1AA DB2C-C1AA-ND	Operating Temperature	-40°C ~ 120°C
Operating Position	0.330" (8.4mm)	Operating Force	250gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	29 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP50 - Dust Protected
Features	-	Electrical Life	6,000 Cycles
Differential Travel	0.004" (0.1mm)	Current Rating	10A (AC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
