CU103601

Cherry Switches (ZF Electronics)

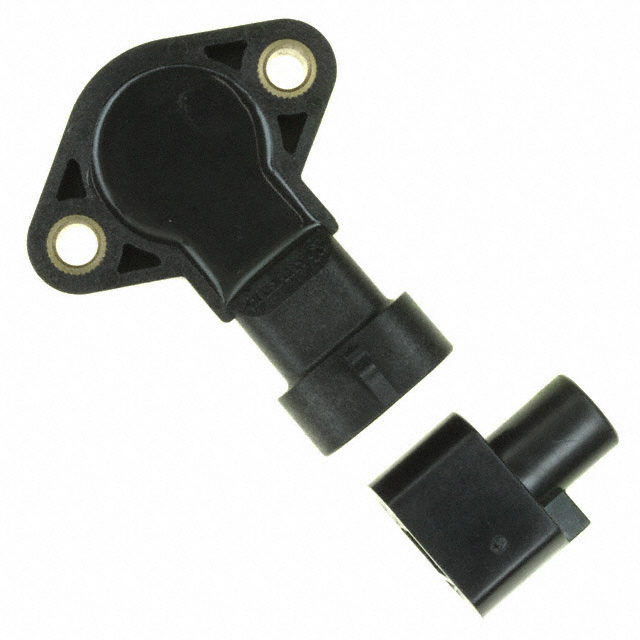

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CU103601
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SENSOR ANGLE 180DEG CONNECTOR
Datasheets:	1.CU103601.pdf 2.CU103601.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1556 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1556 pcs

Reference Price (In US Dollars)

1 pcs: $19.399

10 pcs: $16.754

25 pcs: $15.431

50 pcs: $13.668

100 pcs: $13.227

250 pcs: $12.786

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$19.399

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CU103601

Part Number	CU103601	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 180DEG CONNECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1556 pcs	Data sheet	1.CU103601.pdf 2.CU103601.pdf
Voltage - Supply	5V	Termination Style	Connector
Technology	Hall Effect	Supplier Device Package	-
Series	-	Rotation Angle - Electrical, Mechanical	0° ~ 180°, Continuous
Resistance Tolerance	-	Packaging	Box
Package / Case	Module	Output Signal	Clockwise Increase
Output	Analog Voltage	Other Names	CH926 CU103601-ND
Operating Temperature	-40°C ~ 125°C	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Linearity	±3.5%	Linear Range	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Measuring	Angle
Detailed Description	Hall Effect Sensor Angle External Magnet, Included Connector	Actuator Type	External Magnet, Included
