CSHD5-25L TR13

Central Semiconductor

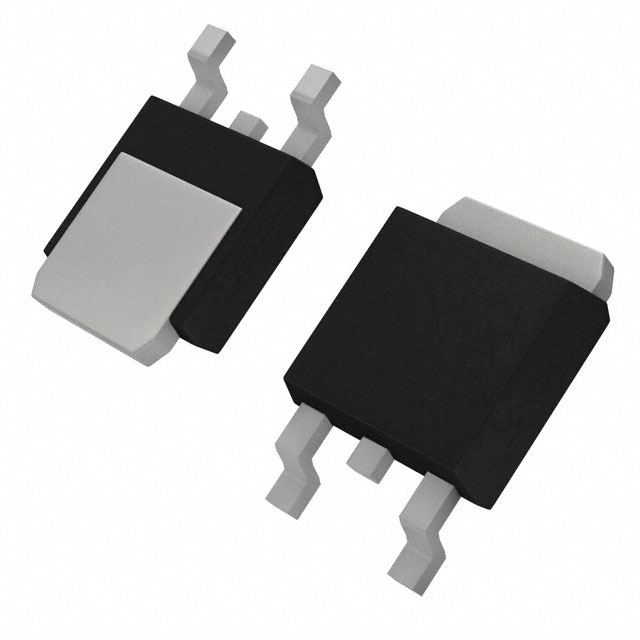

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CSHD5-25L TR13
Manufacturer/Brand:	Central Semiconductor
Product description	DIODE SCHOTTKY 25V 5A DPAK
Datasheets:	CSHD5-25L TR13.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	209748 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 209748 pcs

Reference Price (In US Dollars)

2500 pcs: $0.153

5000 pcs: $0.146

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.153

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CSHD5-25L TR13

Part Number	CSHD5-25L TR13	Manufacturer	Central Semiconductor
Description	DIODE SCHOTTKY 25V 5A DPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	209748 pcs	Data sheet	CSHD5-25L TR13.pdf
Voltage - Forward (Vf) (Max) @ If	470mV @ 5A	Voltage - DC Reverse (Vr) (Max)	25V
Supplier Device Package	DPAK	Speed	Fast Recovery = 200mA (Io)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63	Other Names	CSHD5-25L TR13 PBFREE CSHD5-25L TR13-ND CSHD5-25LTR13
Operating Temperature - Junction	-65°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 25V 5A Surface Mount DPAK	Current - Reverse Leakage @ Vr	500µA @ 25V
Current - Average Rectified (Io)	5A	Capacitance @ Vr, F	-
