CJD45H11 TR13

Central Semiconductor

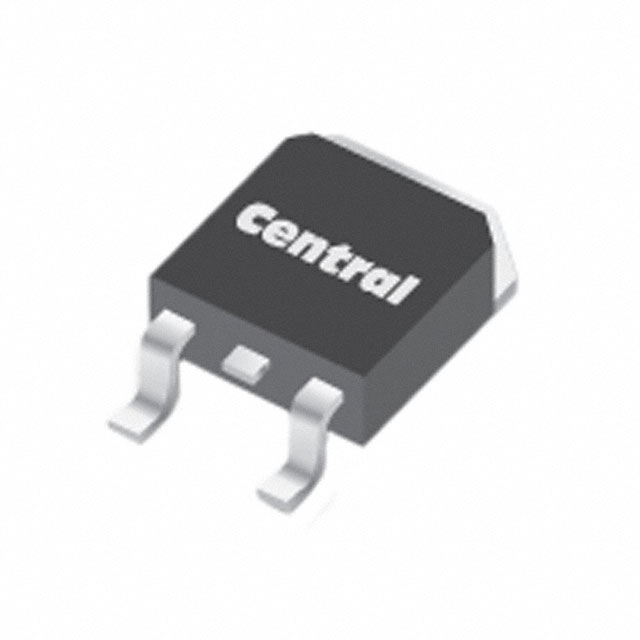

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CJD45H11 TR13
Manufacturer/Brand:	Central Semiconductor
Product description	TRANS PNP 80V 8A DPAK
Datasheets:	CJD45H11 TR13.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36075 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36075 pcs

Reference Price (In US Dollars)

1 pcs: $0.813

10 pcs: $0.735

25 pcs: $0.656

100 pcs: $0.591

250 pcs: $0.525

500 pcs: $0.459

1000 pcs: $0.381

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.813

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CJD45H11 TR13

Part Number	CJD45H11 TR13	Manufacturer	Central Semiconductor
Description	TRANS PNP 80V 8A DPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36075 pcs	Data sheet	CJD45H11 TR13.pdf
Voltage - Collector Emitter Breakdown (Max)	80V	Vce Saturation (Max) @ Ib, Ic	1V @ 400mA, 8A
Transistor Type	PNP	Supplier Device Package	DPAK
Series	-	Power - Max	1.75W
Packaging	Cut Tape (CT)	Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Other Names	CJD45H11 TR13-CT CJD45H11 TR13-CT-ND CJD45H11TR13-CT	Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	50MHz
Detailed Description	Bipolar (BJT) Transistor PNP 80V 8A 50MHz 1.75W Surface Mount DPAK	DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 4A, 1V
Current - Collector Cutoff (Max)	10µA	Current - Collector (Ic) (Max)	8A
