Central Semiconductor
| Part Number | CDM22011-600LRFP SL | Manufacturer | Central Semiconductor |
|---|---|---|---|

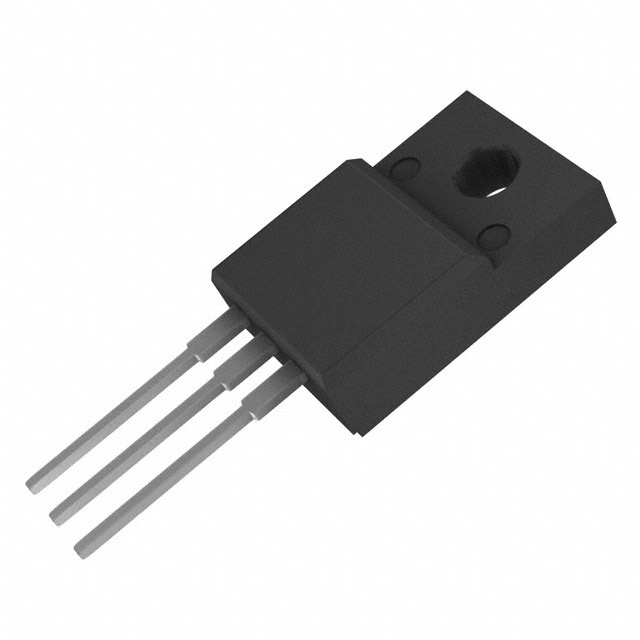

| Description | MOSFET N-CH 11A 600V TO-220FP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35489 pcs | Data sheet | CDM22011-600LRFP SL.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | 30V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | TO-220FP |
| Series | - | Rds On (Max) @ Id, Vgs | 360 mOhm @ 5.5A, 10V |
| Power Dissipation (Max) | 25W (Tc) | Packaging | Tube |
| Package / Case | TO-220-3 Full Pack | Other Names | CDM22011-600LRFP SL PBFREE CDM22011-600LRFP SL-ND CDM22011-600LRFPSL |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 763pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 23.05nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 11A (Tc) 25W (Tc) Through Hole TO-220FP |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
