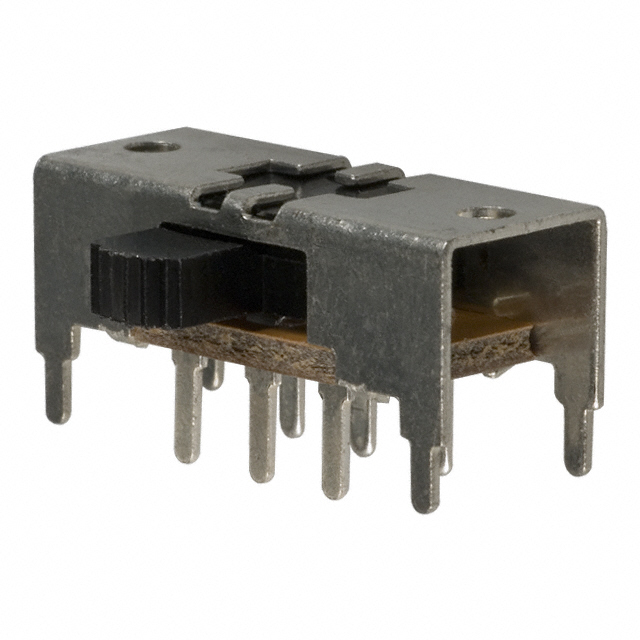

CW Industries
| Part Number | GPI-152-3013 | Manufacturer | CW Industries |
|---|---|---|---|
| Description | SWITCH SLIDE DPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67083 pcs | Data sheet | 1.GPI-152-3013.pdf2.GPI-152-3013.pdf |
| Voltage Rating - DC | 125V | Voltage Rating - AC | 125V |
| Termination Style | PC Pin | Switch Travel | 3.30mm |
| Switch Function | On-On | Series | GPI |
| Packaging | Bulk | Other Names | GPI 152-3013 GPI152-3013 GPI1523013 SW114 |
| Operating Temperature | -10°C ~ 104°C | Operating Force | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Electrical Life | 6,000 Cycles | Detailed Description | Slide Switch DPDT Through Hole, Right Angle |
| Current Rating | 3A (AC), 500mA (DC) | Contact Timing | Not Specified |
| Contact Material | Copper | Contact Finish | Silver |
| Circuit | DPDT | Actuator Type | Standard |
| Actuator Material | Polyamide (PA66), Nylon 6/6 | Actuator Length | 5.08mm |
