CWN-320-14-0000

CW Industries

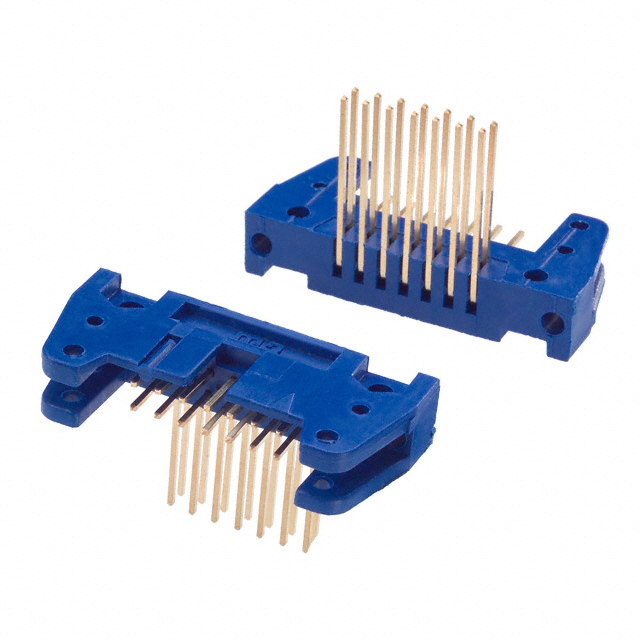

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CWN-320-14-0000
Manufacturer/Brand:	CW Industries
Product description	CONN HDR 14PIN RT ANG WIRE WRAP
Datasheets:	CWN-320-14-0000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29548 pcs

Reference Price (In US Dollars)

1 pcs: $1.138

10 pcs: $1.092

100 pcs: $0.91

500 pcs: $0.774

1000 pcs: $0.66

5000 pcs: $0.592

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.138

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CWN-320-14-0000

Part Number	CWN-320-14-0000	Manufacturer	CW Industries
Description	CONN HDR 14PIN RT ANG WIRE WRAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29548 pcs	Data sheet	CWN-320-14-0000.pdf
Voltage Rating	-	Termination	Wire Wrap
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CWN	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	CHA14G CWN320140000 IDH-14K-WR-T R252
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.291" (7.40mm)
Insulation Color	Blue	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.610" (15.49mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	50.0µin (1.27µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Nickel
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
