CUI, Inc.

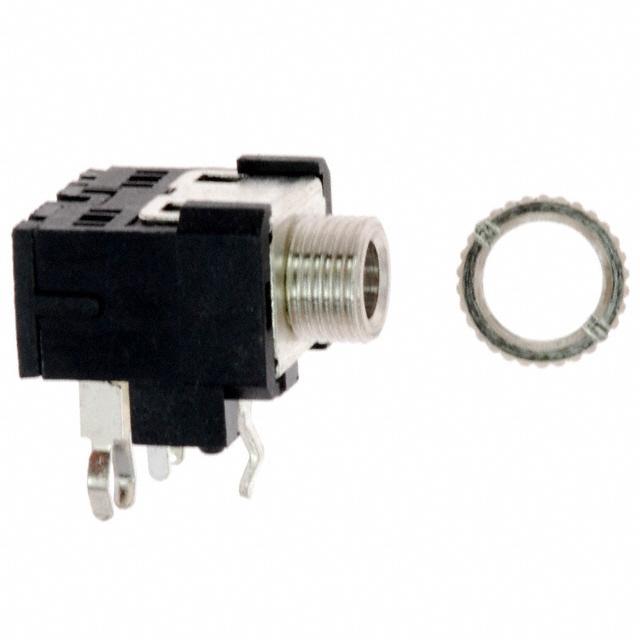

| Part Number | SJ1-3545 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50007 pcs | Data sheet | SJ1-3545.pdf |
| Voltage - Rated | 12VDC | Thread Size | M6 |
| Termination | Kinked Pin | Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded | Series | SJ1 |
| Panel Hole Size | 0.236" (5.99mm) | Packaging | Bulk |
| Other Names | 045-0988R CP1-3545 SJ13545 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Two Switches |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin | Current Rating | 1A |
| Contact Material - Plating | Nickel, Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | Brass |
| Body Color | Black | Actual Diameter | 0.142" (3.60mm) |
