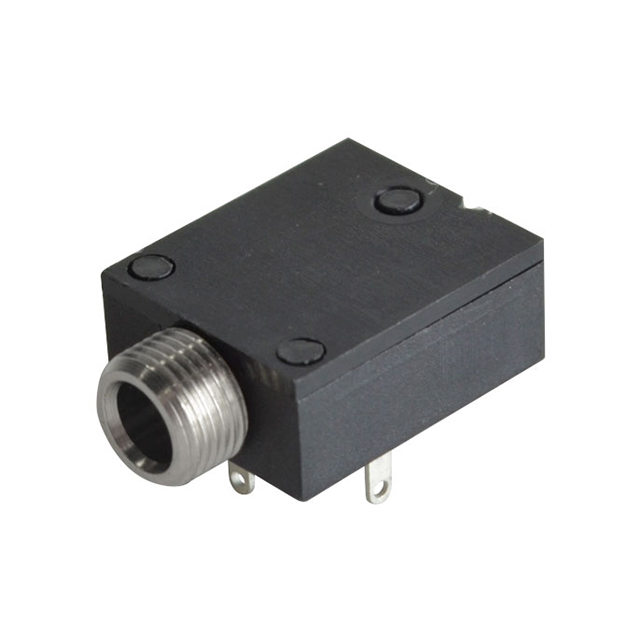

CUI, Inc.
| Part Number | SJ1-3514 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49882 pcs | Data sheet | SJ1-3514.pdf |
| Voltage - Rated | 12VDC | Thread Size | M6 |
| Termination | Solder Eyelet(s) | Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded | Series | SJ1 |
| Panel Hole Size | 0.236" (5.99mm) | Packaging | Bulk |
| Other Names | 045-0968R CP1-3514 SJ13514 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | 2 pcs - 1 Connector, 1 Nut |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Current Rating | 1A | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
