CUI, Inc.

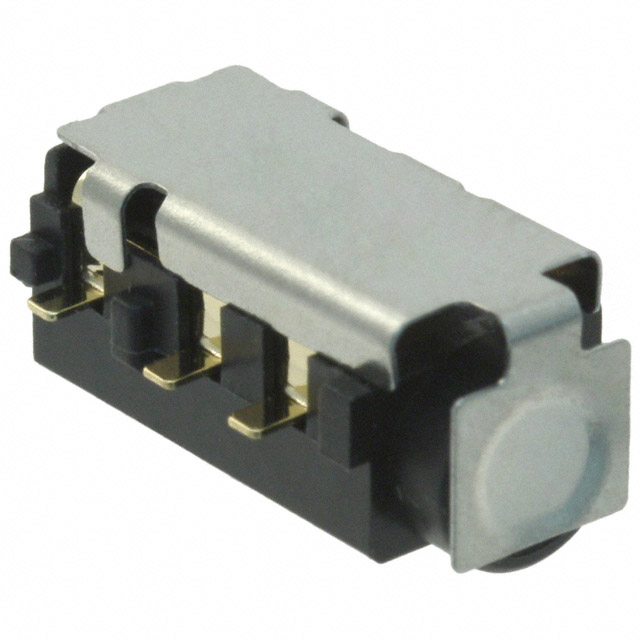

| Part Number | SJ-3503-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69356 pcs | Data sheet | SJ-3503-SMT-TR.pdf |
| Voltage - Rated | 12VDC | Thread Size | - |
| Termination | Solder | Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Shielded | Series | - |
| Panel Hole Size | - | Packaging | Original-Reel® |
| Other Names | CP-3503SJDKR | Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts | Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Two Switches | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Female |
| Features | Board Lock | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Gold |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.142" (3.60mm) |
