CUI, Inc.

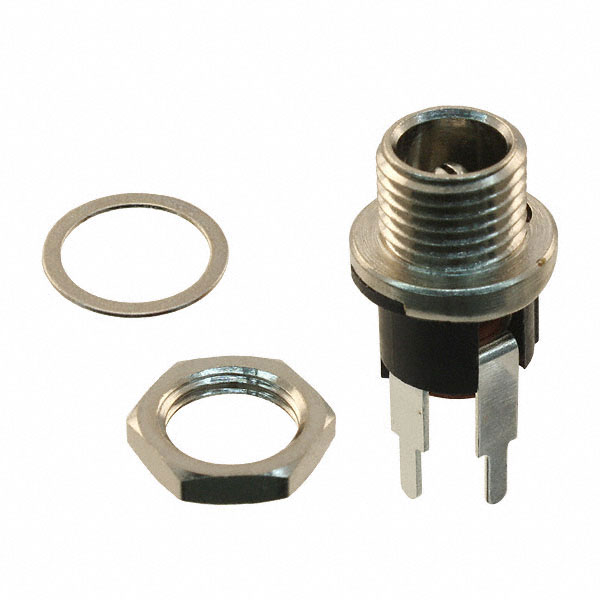

| Part Number | PJ-064B | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34654 pcs | Data sheet | PJ-064B.pdf |
| Voltage - Rated | 24VDC | Thread Size | 5/16"-32 |
| Termination | Solder | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | 045-1529R CP-064B PJ064B |
Operating Temperature | -25°C ~ 70°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.348" (8.85mm) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | Mounting Hardware, Thread Lock |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass, Phosphor Bronze |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | Brass | Body Color | Black |
| Actual Diameter | 0.098" (2.50mm ID), 0.224" (5.70mm OD) |
