CUI, Inc.

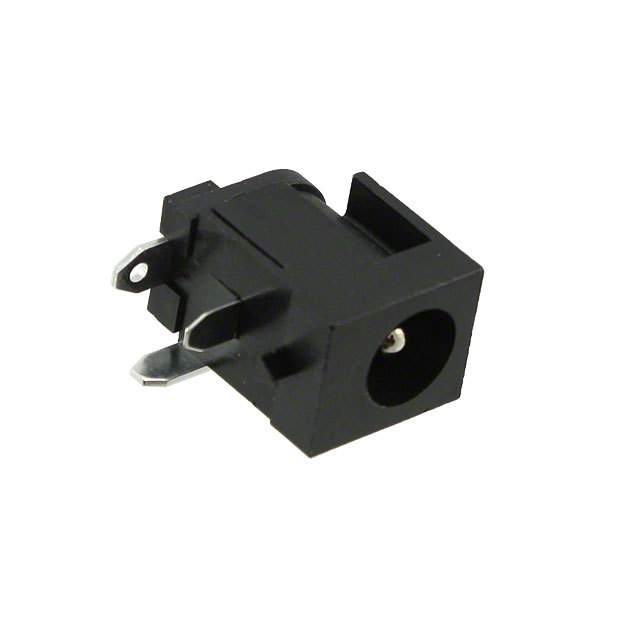

| Part Number | PJ-057AH | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80003 pcs | Data sheet | PJ-057AH.pdf |
| Voltage - Rated | 24VDC | Thread Size | - |
| Termination | Solder | Shielding | Unshielded |
| Series | - | Packaging | Bulk |
| Other Names | 045-1204R CP-057AH PJ057AH |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.360" (9.15mm) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | Board Guide |
| Detailed Description | Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.078" (2.00mm ID), 0.248" (6.30mm OD) |
