CUI, Inc.

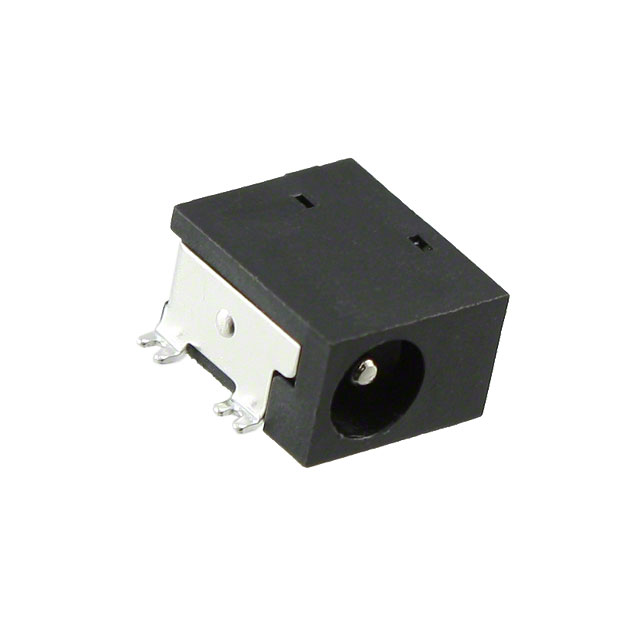

| Part Number | PJ-014D-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.35X3.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6290 pcs | Data sheet | PJ-014D-SMT-TR.pdf |
| Voltage - Rated | 16VDC | Thread Size | - |
| Termination | Solder | Shielding | Unshielded |
| Series | - | Packaging | Tape & Reel (TR) |
| Other Names | CP-014DPJTR PJ-014D-SMT PJ014DSMTTR |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 1.35mm ID (0.053"), 3.50mm OD (0.138") Surface Mount, Right Angle |
| Current Rating | 2A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.051" (1.30mm ID), 0.154" (3.90mm OD) |
