PJ-005B

CUI, Inc.

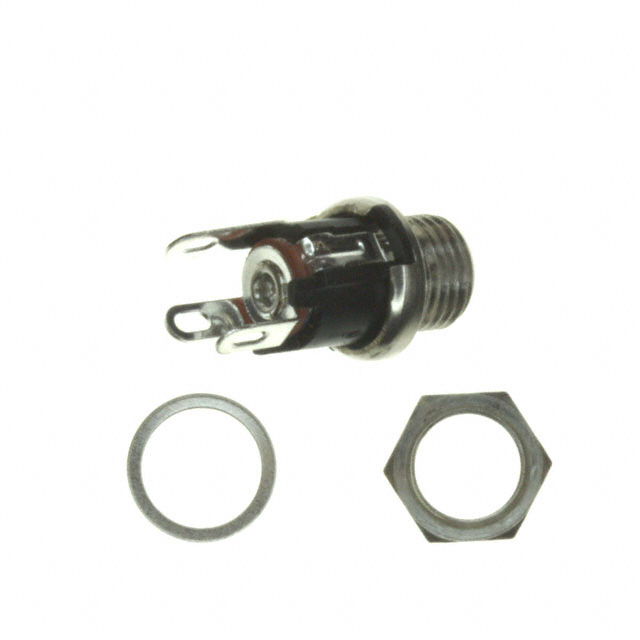

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PJ-005B
Manufacturer/Brand:	CUI, Inc.
Product description	CONN PWR JACK 2.5X5.5MM SOLDER
Datasheets:	PJ-005B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42472 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42472 pcs

Reference Price (In US Dollars)

1 pcs: $0.903

10 pcs: $0.867

25 pcs: $0.795

50 pcs: $0.759

100 pcs: $0.722

250 pcs: $0.632

500 pcs: $0.614

1000 pcs: $0.524

2500 pcs: $0.488

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.903

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PJ-005B

Part Number	PJ-005B	Manufacturer	CUI, Inc.
Description	CONN PWR JACK 2.5X5.5MM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42472 pcs	Data sheet	PJ-005B.pdf
Voltage - Rated	16VDC	Thread Size	-
Termination	Solder Eyelet(s)	Shielding	Unshielded
Series	-	Packaging	Bulk
Other Names	045-0188R CP-6 PJ005B	Operating Temperature	-40°C ~ 70°C
Number of Positions/Contacts	2 Conductors, 3 Contacts	Mounting Type	Panel Mount, Through Hole
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Length/Depth	0.354" (9.00mm)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Single Switch, Normally Closed	Insulation Color	-
Ingress Protection	-	Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Includes	3 pcs - 1 Connector, 1 Nut, 1 Washer	Housing Material	Polybutylene Terephthalate (PBT)
Gender	Male	Features	Mounting Hardware, Thread Lock
Detailed Description	Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole	Current Rating	5A
Contact Material - Plating	Silver	Contact Material	Brass, Phosphor Bronze
Connector Type	Jack	California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Body Material	Brass	Body Color	Silver, Black
Actual Diameter	0.098" (2.50mm ID), 0.224" (5.70mm OD)
