PDS1-S5-D9-M

CUI, Inc.

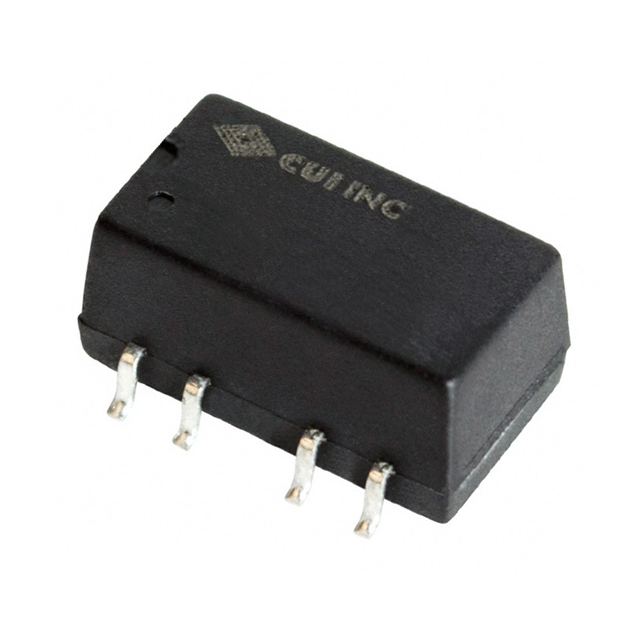

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PDS1-S5-D9-M
Manufacturer/Brand:	CUI, Inc.
Product description	DC DC CONVERTER +/-9V 1W
Datasheets:	PDS1-S5-D9-M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19431 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19431 pcs

Reference Price (In US Dollars)

1 pcs: $1.936

5 pcs: $1.907

15 pcs: $1.879

30 pcs: $1.824

60 pcs: $1.769

105 pcs: $1.713

255 pcs: $1.658

510 pcs: $1.548

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PDS1-S5-D9-M

Part Number	PDS1-S5-D9-M	Manufacturer	CUI, Inc.
Description	DC DC CONVERTER +/-9V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19431 pcs	Data sheet	PDS1-S5-D9-M.pdf
Voltage - Output 4	-	Voltage - Output 3	-
Voltage - Output 2	-9V	Voltage - Output 1	9V
Voltage - Isolation	1.5kV	Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V	Type	Isolated Module
Supplier Device Package	-	Size / Dimension	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Series	PDS1-M	Power (Watts)	1W
Package / Case	10-SMD Module, 6 Leads, Gull Wing	Other Names	102-4654 PDS1-S5-D9-M-ND
Operating Temperature	-40°C ~ 105°C	Number of Outputs	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Efficiency	80%
Detailed Description	Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 4.5V - 5.5V Input	Current - Output (Max)	56mA, 56mA
Control Features	-	California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Applications	ITE (Commercial)
