PDM2-S5-D15-S

CUI, Inc.

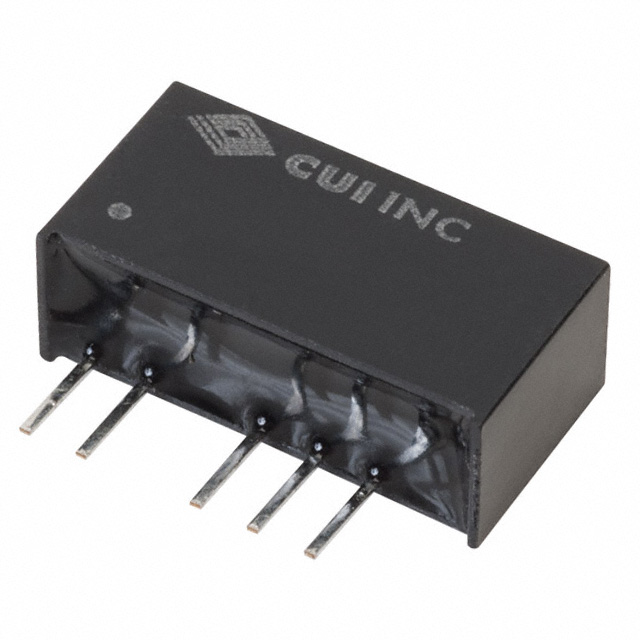

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PDM2-S5-D15-S
Manufacturer/Brand:	CUI, Inc.
Product description	DC DC CONVERTER +/-15V 2W
Datasheets:	PDM2-S5-D15-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14056 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14056 pcs

Reference Price (In US Dollars)

1 pcs: $2.334

5 pcs: $2.30

12 pcs: $2.266

36 pcs: $2.199

60 pcs: $2.133

108 pcs: $2.066

252 pcs: $1.999

504 pcs: $1.866

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.334

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PDM2-S5-D15-S

Part Number	PDM2-S5-D15-S	Manufacturer	CUI, Inc.
Description	DC DC CONVERTER +/-15V 2W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14056 pcs	Data sheet	PDM2-S5-D15-S.pdf
Voltage - Output 3	-	Voltage - Output 2	-15V
Voltage - Output 1	15V	Voltage - Isolation	1.5kV
Voltage - Input (Min)	4.5V	Voltage - Input (Max)	5.5V
Type	Isolated Module	Size / Dimension	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Series	PDM2-S	Power (Watts)	2W
Packaging	Tube	Package / Case	6-SIP Module, 5 Leads
Other Names	102-2733 PDM2S5D15S	Operating Temperature	-40°C ~ 105°C
Number of Outputs	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	SCP
Efficiency	84%	Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 4.5V - 5.5V Input
Current - Output (Max)	67mA, 67mA	Control Features	-
California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.	Applications	ITE (Commercial)
