CUI, Inc.

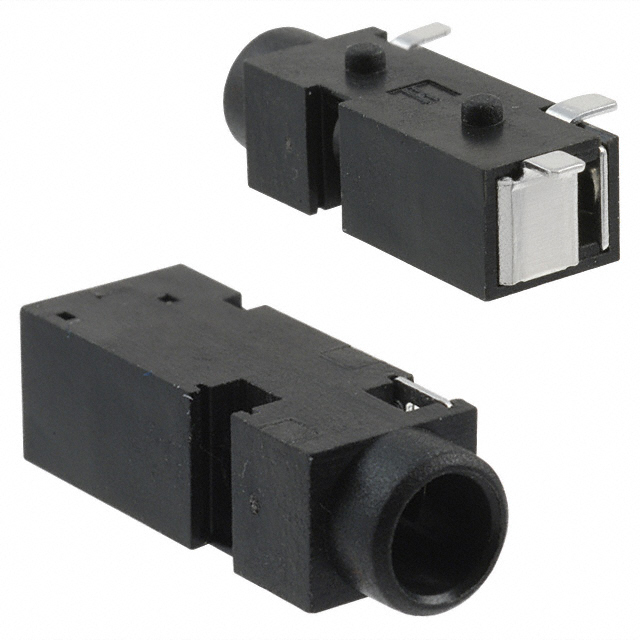

| Part Number | MJ-3523-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104654 pcs | Data sheet | MJ-3523-SMT-TR.pdf |
| Voltage - Rated | 12VDC | Thread Size | - |
| Termination | Solder | Signal Lines | Mono |
| Shielding | Unshielded | Series | - |
| Panel Hole Size | - | Packaging | Cut Tape (CT) |
| Other Names | 045-1241R CP-3523MJCT |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | Board Guide |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.142" (3.60mm) |
