PB1ST-69CB

CTS Electronic Components

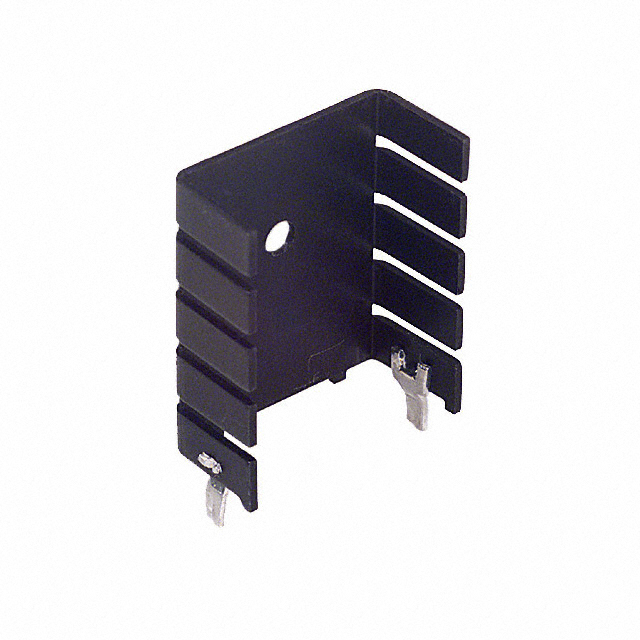

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PB1ST-69CB
Manufacturer/Brand:	CTS Electronic Components
Product description	HEATSINK VERT W/LOCKTABS TO-220
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5663 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5663 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PB1ST-69CB

Part Number	PB1ST-69CB	Manufacturer	CTS Electronic Components
Description	HEATSINK VERT W/LOCKTABS TO-220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5663 pcs	Data sheet
Width	1.000" (25.40mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	20.00°C/W	Thermal Resistance @ Forced Air Flow	-
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-126, TO-127, TO-220
Other Names	294-1043	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Length	1.330" (33.78mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.500" (12.70mm)	Diameter	-
Detailed Description	Heat Sink TO-126, TO-127, TO-220 Aluminum Board Level, Vertical	Attachment Method	Bolt On and PC Pin
