PB1-36CB

CTS Electronic Components

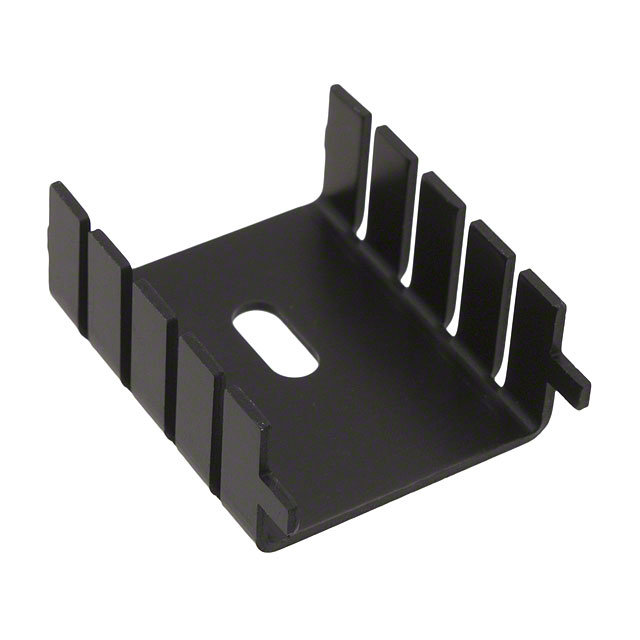

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PB1-36CB
Manufacturer/Brand:	CTS Electronic Components
Product description	HEATSINK VERT .50"H BLK TO-220
Datasheets:	1.PB1-36CB.pdf 2.PB1-36CB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	92742 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 92742 pcs

Reference Price (In US Dollars)

1 pcs: $0.397

10 pcs: $0.376

25 pcs: $0.366

50 pcs: $0.356

100 pcs: $0.336

250 pcs: $0.316

500 pcs: $0.297

1000 pcs: $0.277

5000 pcs: $0.267

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.397

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PB1-36CB

Part Number	PB1-36CB	Manufacturer	CTS Electronic Components
Description	HEATSINK VERT .50"H BLK TO-220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	92742 pcs	Data sheet	1.PB1-36CB.pdf 2.PB1-36CB.pdf
Width	1.000" (25.40mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	20.00°C/W	Thermal Resistance @ Forced Air Flow	-
Shape	Rectangular, Fins	Series	PB1-36
Power Dissipation @ Temperature Rise	1.0W @ 70°C	Package Cooled	TO-126, TO-127, TO-220
Other Names	294-1042 PB136CB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	11 Weeks	Length	1.180" (29.97mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.500" (12.70mm)
Diameter	-	Detailed Description	Heat Sink TO-126, TO-127, TO-220 Aluminum 1.0W @ 70°C Board Level, Vertical
Attachment Method	Bolt On and PC Pin
