CTS Electronic Components

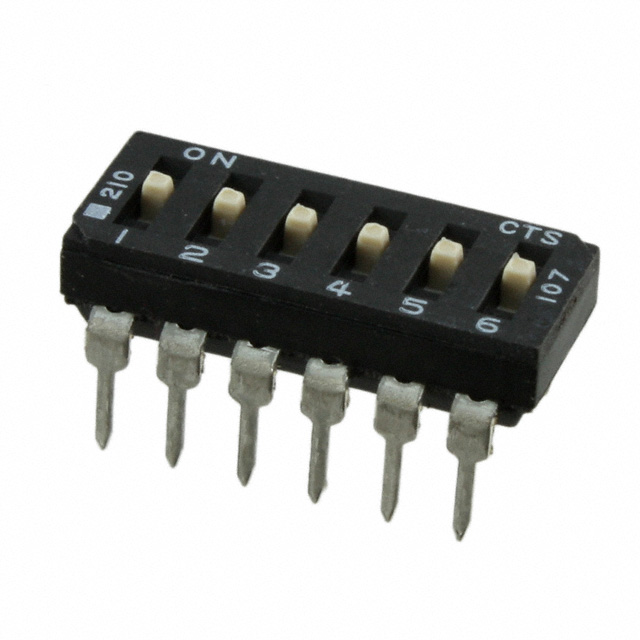

| Part Number | 210-6MS | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 20V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127952 pcs | Data sheet | 210-6MS.pdf |
| Washable | No | Voltage Rating | 20VDC |
| Termination Style | PC Pin | Series | 210 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 210006MS 2106MS 210B006MS 212B006MS CT2106MS |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 7 Weeks | Length | 0.658" (16.71mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.190" (4.83mm) |
| Features | Epoxy Sealed Terminals | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 100mA 20VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | SPST | Body Material | - |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
