CTS Electronic Components

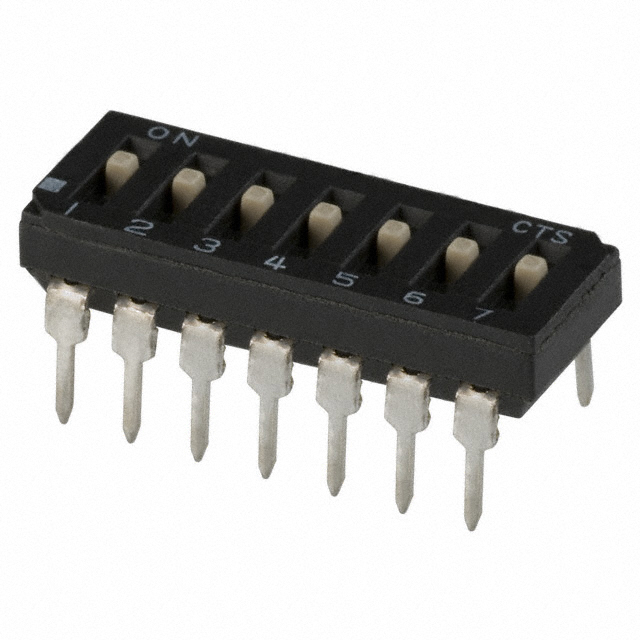

| Part Number | 209-7LPST | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 20V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86520 pcs | Data sheet | 209-7LPST.pdf |
| Washable | Yes | Voltage Rating | 20VDC |
| Termination Style | PC Pin | Series | 209 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 209007LPST 2097LPST CT2097LPST |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Mechanical Life | - | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 0.758" (19.25mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.180" (4.57mm) | Features | Epoxy Sealed Terminals, Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 7 Position Through Hole Slide (Standard) Actuator 100mA 20VDC |
| Current Rating | 100mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | - | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
