CTS Electronic Components

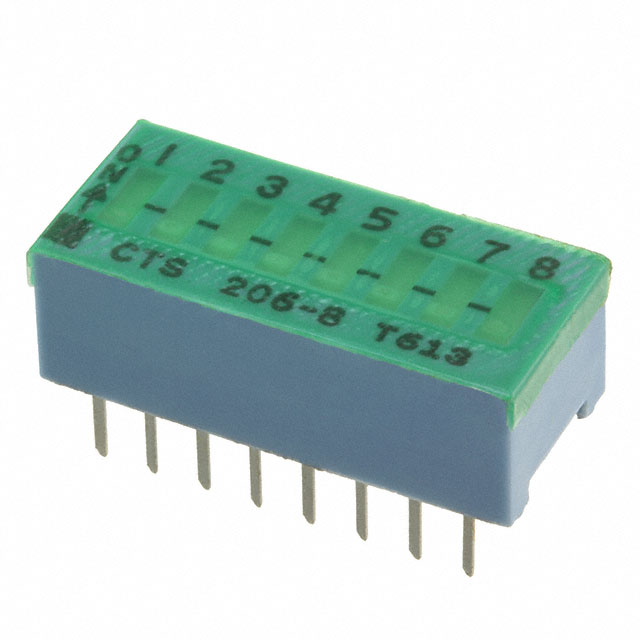

| Part Number | 206-8LPST | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 50MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101490 pcs | Data sheet | 206-8LPST.pdf |
| Washable | Yes | Voltage Rating | 24VDC |
| Termination Style | PC Pin | Series | 206 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 206-8LPST-ND 206008LPST 2068LPST CT3106 |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length | 0.886" (22.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.299" (7.60mm) |
| Features | Epoxy Sealed Terminals, Tape Seal | Electrical Life | 10,000 Cycles |
| Detailed Description | Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 50mA 24VDC | Current Rating | 50mA |
| Contact Material | - | Contact Finish | Gold |
| Circuit | SPST | Body Material | Plastic |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
