CTS Electronic Components

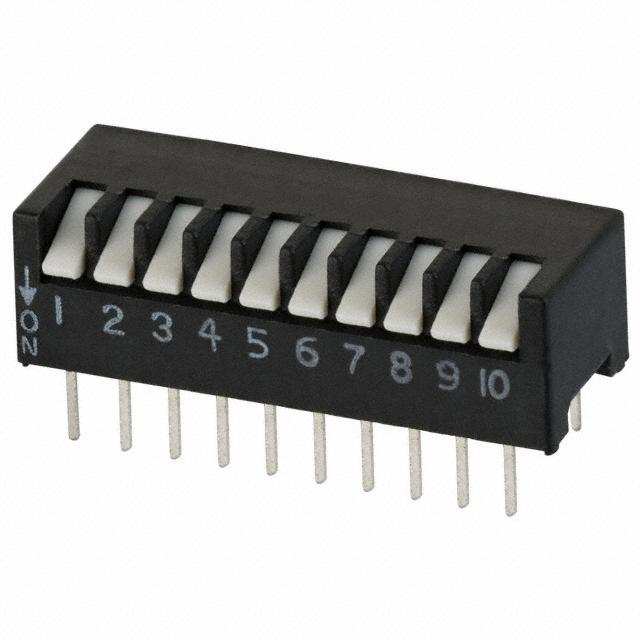

| Part Number | 195-10MST | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 50MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120189 pcs | Data sheet | 195-10MST.pdf |
| Washable | Yes | Voltage Rating | 24VDC |
| Termination Style | PC Pin | Series | 195 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 195-10MSTN 195-10MSTN-ND 195010MST 195010MSTN 19510MST 19510MSTN CT19510MST |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Mechanical Life | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length | 1.086" (27.58mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.311" (7.90mm) | Features | Epoxy Sealed Terminals, Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 10 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC |
| Current Rating | 50mA | Contact Material | - |
| Contact Finish | Tin | Circuit | SPST |
| Body Material | Plastic | Actuator Type | Piano |
| Actuator Level | Raised |
