CTS Electronic Components

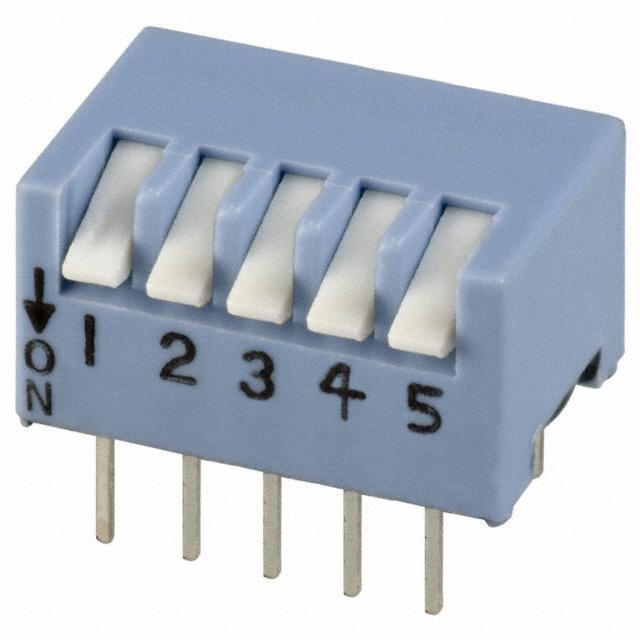

| Part Number | 194-5MST | Manufacturer | CTS Electronic Components |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 50MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84247 pcs | Data sheet | 194-5MST.pdf |
| Washable | Yes | Voltage Rating | 24VDC |
| Termination Style | PC Pin | Series | 194 |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 194-5MSTN 194-5MSTN-ND 194005MST 194005MSTN 1945MST 1945MSTN CT1945 CT1945MST |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 5 | Mounting Type | Through Hole, Right Angle |
| Mechanical Life | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length | 0.586" (14.88mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.311" (7.90mm) | Features | Epoxy Sealed Terminals, Tape Seal |
| Electrical Life | 7,000 Cycles | Detailed Description | Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC |
| Current Rating | 50mA | Contact Material | - |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Plastic | Actuator Type | Piano |
| Actuator Level | Raised |
