CR8348-1000

CR Magnetics, Inc.

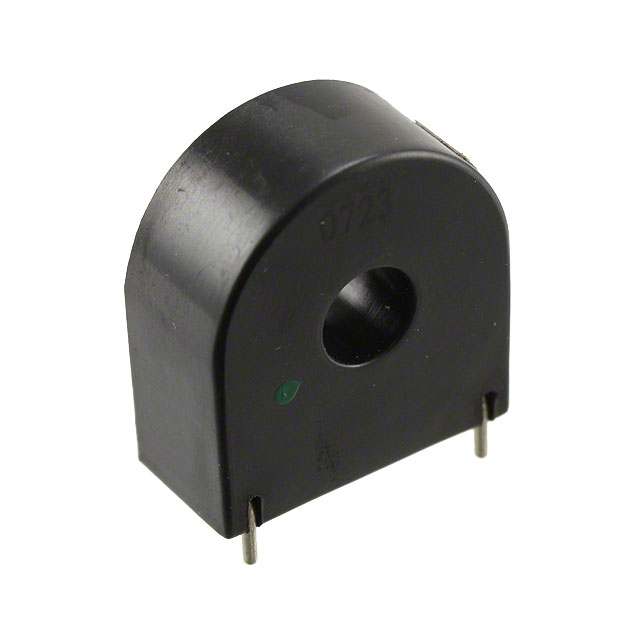

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CR8348-1000
Manufacturer/Brand:	CR Magnetics, Inc.
Product description	CURR SENSE XFMR 20A T/H
Datasheets:	CR8348-1000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11154 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11154 pcs

Reference Price (In US Dollars)

1 pcs: $3.446

10 pcs: $2.64

25 pcs: $2.237

50 pcs: $2.20

100 pcs: $2.09

250 pcs: $2.068

500 pcs: $2.039

1000 pcs: $2.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.446

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CR8348-1000

Part Number	CR8348-1000	Manufacturer	CR Magnetics, Inc.
Description	CURR SENSE XFMR 20A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11154 pcs	Data sheet	CR8348-1000.pdf
Weight	-	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.925" L x 0.433" W (23.50mm x 11.00mm)	Series	CR8300
Ratings	-	Packaging	Bulk
Other Names	582-1161 CR8348-1000-ND CR83481000	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.984" (25.00mm)
Frequency Range	20Hz ~ 1kHz	Energy Time (E.T.)	-
Detailed Description	20A Current Sense Transformer 20Hz ~ 1kHz 24 Ohm Through Hole	DC Resistance (DCR)	24 Ohm
Current Ratio	1000:1	Current Rating	20A
