CEL (California Eastern Laboratories)

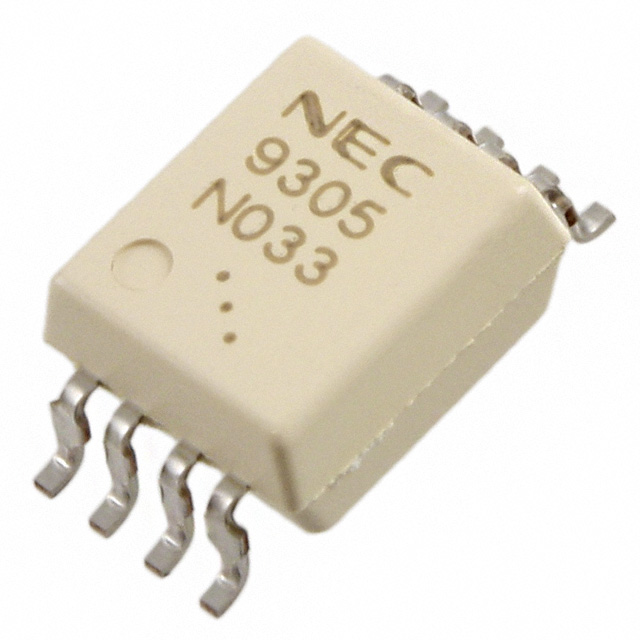

| Part Number | PS9305L-AX | Manufacturer | CEL (California Eastern Laboratories) |
|---|---|---|---|
| Description | OPTOISO 5KV GATE DRIVER 8SDIP GW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15180 pcs | Data sheet | 1.PS9305L-AX.pdf2.PS9305L-AX.pdf3.PS9305L-AX.pdf4.PS9305L-AX.pdf |
| Voltage - Supply | 15 V ~ 30 V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.56V | Technology | Optical Coupling |
| Supplier Device Package | 8-SDIP Gull Wing | Series | - |
| Rise / Fall Time (Typ) | 50ns, 50ns | Pulse Width Distortion (Max) | 100ns |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns | Packaging | Bulk |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) | Other Names | PS9305LAX |
| Operating Temperature | -40°C ~ 110°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-SDIP Gull Wing | Current - Peak Output | 2.5A |
| Current - Output High, Low | 2A, 2A | Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 25kV/µs | Approvals | CSA, SEMKO, UL |
