PS2933-1-AX

CEL (California Eastern Laboratories)

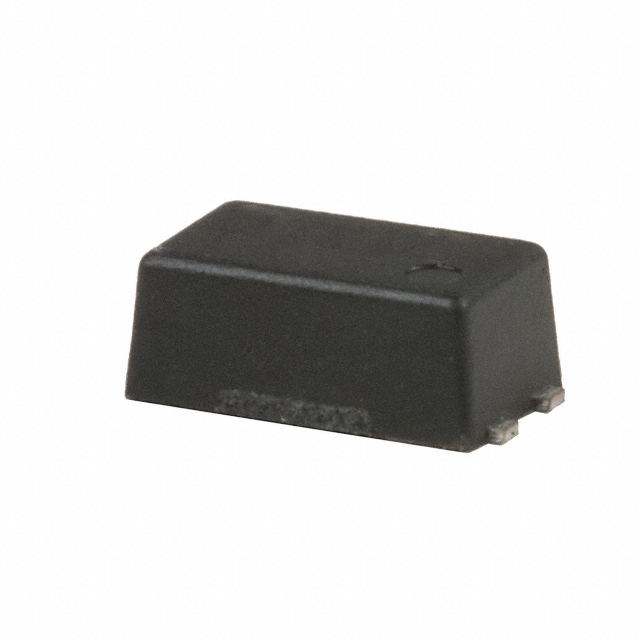

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS2933-1-AX
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISOLATR 2.5KV DARL 4MINIFLAT
Datasheets:	1.PS2933-1-AX.pdf 2.PS2933-1-AX.pdf 3.PS2933-1-AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25186 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 25186 pcs

Reference Price (In US Dollars)

1 pcs: $1.163

10 pcs: $1.03

25 pcs: $0.764

100 pcs: $0.665

250 pcs: $0.598

500 pcs: $0.532

1000 pcs: $0.457

2500 pcs: $0.432

5000 pcs: $0.415

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.163

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS2933-1-AX

Part Number	PS2933-1-AX	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISOLATR 2.5KV DARL 4MINIFLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25186 pcs	Data sheet	1.PS2933-1-AX.pdf 2.PS2933-1-AX.pdf 3.PS2933-1-AX.pdf
Voltage - Output (Max)	350V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.1V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-Mini-Flat
Series	NEPOC	Rise / Fall Time (Typ)	20µs, 5µs
Packaging	Strip	Package / Case	4-SMD, Flat Leads
Output Type	Darlington	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington Output 2500Vrms 1 Channel 4-Mini-Flat	Current Transfer Ratio (Min)	400% @ 1mA
Current Transfer Ratio (Max)	4500% @ 1mA	Current - Output / Channel	60mA
Current - DC Forward (If) (Max)	50mA
