PS2841-4B-AX

CEL (California Eastern Laboratories)

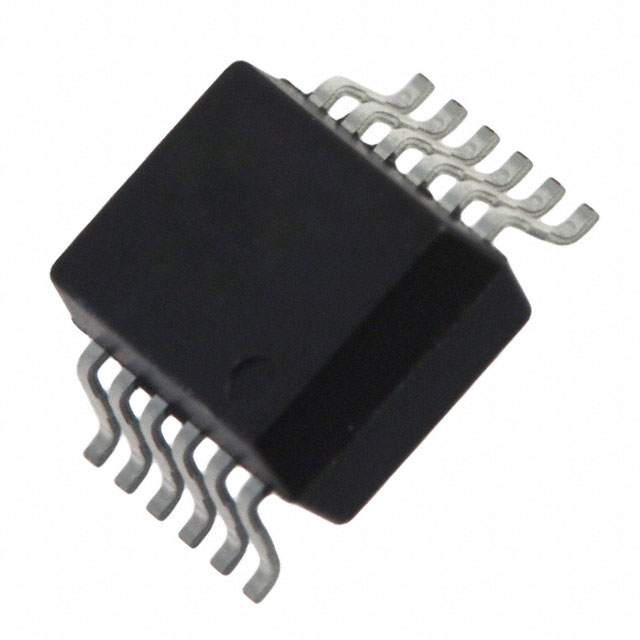

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS2841-4B-AX
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISO 1.5KV 4CH TRANS 12BSOP
Datasheets:	1.PS2841-4B-AX.pdf 2.PS2841-4B-AX.pdf 3.PS2841-4B-AX.pdf 4.PS2841-4B-AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18309 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18309 pcs

Reference Price (In US Dollars)

1 pcs: $1.951

10 pcs: $1.626

25 pcs: $1.365

100 pcs: $1.17

250 pcs: $1.04

500 pcs: $0.943

1000 pcs: $0.865

2500 pcs: $0.829

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.951

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS2841-4B-AX

Part Number	PS2841-4B-AX	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISO 1.5KV 4CH TRANS 12BSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18309 pcs	Data sheet	1.PS2841-4B-AX.pdf 2.PS2841-4B-AX.pdf 3.PS2841-4B-AX.pdf 4.PS2841-4B-AX.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	1500Vrms
Voltage - Forward (Vf) (Typ)	1.1V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	12-SSOP
Series	NEPOC	Rise / Fall Time (Typ)	20µs, 110µs
Packaging	Bulk	Package / Case	12-BSOP (0.173", 4.40mm Width)
Output Type	Transistor	Other Names	PS28414BAX
Operating Temperature	-40°C ~ 100°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 1500Vrms 4 Channel 12-SSOP
Current Transfer Ratio (Min)	100% @ 1mA	Current Transfer Ratio (Max)	400% @ 1mA
Current - Output / Channel	20mA	Current - DC Forward (If) (Max)	20mA
