PS2801C-4-A

CEL (California Eastern Laboratories)

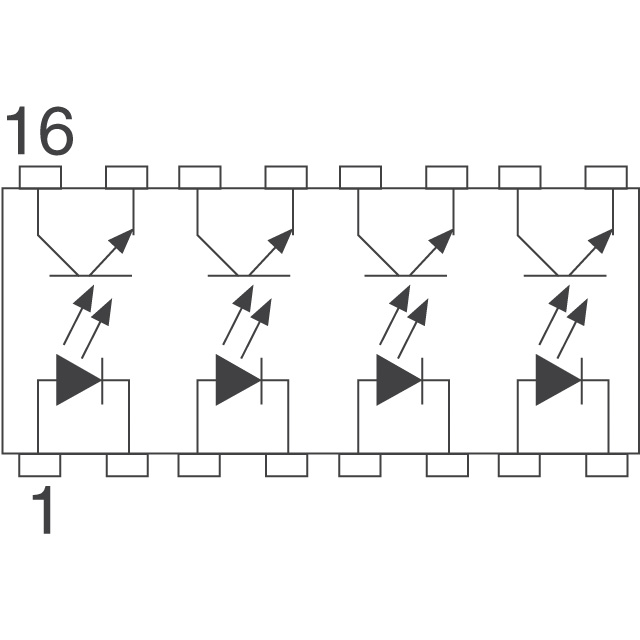

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS2801C-4-A
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISO 2.5KV 4CH TRANS 16SSOP
Datasheets:	1.PS2801C-4-A.pdf 2.PS2801C-4-A.pdf 3.PS2801C-4-A.pdf 4.PS2801C-4-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33725 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 33725 pcs

Reference Price (In US Dollars)

1 pcs: $1.062

10 pcs: $0.941

45 pcs: $0.698

135 pcs: $0.607

270 pcs: $0.546

540 pcs: $0.486

1035 pcs: $0.417

2520 pcs: $0.394

5040 pcs: $0.379

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.062

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS2801C-4-A

Part Number	PS2801C-4-A	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISO 2.5KV 4CH TRANS 16SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33725 pcs	Data sheet	1.PS2801C-4-A.pdf 2.PS2801C-4-A.pdf 3.PS2801C-4-A.pdf 4.PS2801C-4-A.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	10µs, 7µs	Supplier Device Package	16-SSOP
Series	-	Rise / Fall Time (Typ)	5µs, 7µs
Packaging	Tube	Package / Case	16-SOIC (0.173", 4.40mm Width)
Output Type	Transistor	Other Names	PS2801C4A
Operating Temperature	-55°C ~ 100°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 2500Vrms 4 Channel 16-SSOP
Current Transfer Ratio (Min)	50% @ 5mA	Current Transfer Ratio (Max)	400% @ 5mA
Current - Output / Channel	30mA	Current - DC Forward (If) (Max)	30mA
